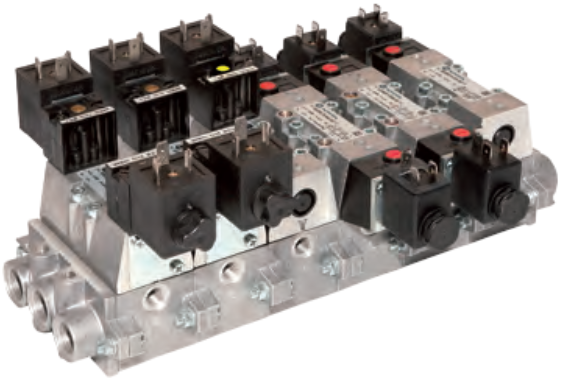

ISO STAR 電磁閥
|
Norgren卓越百年，驅動永續 廣泛的高端流體控制系列 |
|
 |
From humble beginnings to industry leadership, we're celebrating 100 years of innovation and collaboration – here's to the next chapter of possibilities. |
|
IMI Norgren 擁有超過 100 年 的產業經驗，是全球自動化領域公認的領航者。 我們提供一系列具備超高可靠度的氣動及流體控制產品，包含專利技術電磁閥、氣導閥、調壓閥、氣壓缸及壓力開關。 |
|
工作壓力：最高可達 16 bar (氣動) / 10 bar (電磁)
材質：壓鑄鋁本體，PTFE 塗層硬質陽極氧化鋁閥芯
介質：經過 40 µm 過濾的壓縮空氣（潤滑或無潤滑皆可）
防護等級：IP65 (符合相關工業標準)
Medium: Compressed air, 40 µm filtered, lubricated or non-lubricated.
- Operating Pressure:
Solenoid-actuated: Up to 10 bar (145 psi) or 16 bar (232 psi) depending on pilot.
Air-pilot actuated: Up to 16 bar (232 psi).
-
Ambient/Media Temperature:
Solenoid models: -15°C to +50°C (+5°F to +122°F).
Pilot models: Up to +80°C (+176°F).
- Materials: Die-cast aluminum body; hard-anodized aluminum spool & sleeve with PTFE coating.
- Protection Class: IP65 (when used with sealed plugs).
- Voltage：
直流電：24V DC / 120V DC
交流電：110V AC (50/60Hz)
- 備註：若需其他特殊電壓值（如 12V DC, 220V AC 等），歡迎來電或來信洽詢
安裝與配件 (Mounting Options)
安裝方式：底板安裝 (Sub-base Mounted)，支援單站底板或模組化集合底座
Features
- Patented Glandless Spool Technology: The spool and sleeve are specially coated to reduce friction, ensuring an extraordinary service life of over 250 million cycles with maintenance-free operation.
-
ISO 5599-1 Compliance: Sub-base mounted design following international standards (ISO #1, #2, and #3), making system installation and replacement quick and seamless.
-
Integral Flow Regulators: Available for ISO 1 and ISO 2 sizes, allowing precise cylinder speed control directly from the valve body.
-
Safety & ATEX Certified: Options available for ATEX environments (Categories II 2 GD and II 3 GD), ensuring safety in hazardous areas.
Low Power Consumption & Manual Override: Energy-efficient solenoid pilots come standard with manual override for easy on-site commissioning.
)
