Flojet VersiJet Series diaphragm pumps
Flojet
Flojet 為 Xylem 集團旗下品牌，自 1975 年成立以來，最初專注於當時新興的清潔機械市場所需之特殊應用幫浦（special application pumps）。
歷經逾 50 年發展，Flojet 已成長為全球小型幫浦、馬達與計量分配幫浦（dispensing pumps）的領導供應商，產品應用涵蓋飲料分配（beverage dispensing）到地板清潔（floor cleaning）等多元領域，持續為客戶提供高精度、高可靠度的流體控制解決方案。
| VersiJet Series | 4-Chamber Models | 5-Chamber Models |
|---|---|---|
| Pump Design | Permanent Magnet TENV (non-ventilated) | Permanent Magnet TENV (non-ventilated) |
| Voltage | 12V DC 24V DC | 12V DC 24V DC 115V AC |
| Max Flow Rate | 4.5 GPM (17.1 LPM) | 6.0 GPM (22.7 LPM) |
| Duty Cycle | Intermittent | Intermittent |
| Max Pressure | 60 psi (4.1 bar) | 70 psi (4.8 bar) |
| Ports | 3.5 GPM:1/2" (13mm) Straight Hosebarb 4.5 GPM:3/4" (19mm) Straight Hosebarb | 4.0 GPM:1/2" (13mm) Straight Hosebarb 5 & 6 GPM:3/4" (19mm) Straight Hosebarb |
| Pump Head | Glass-filled polypropylene | Glass-filled nylon / Glass-filled polypropylene |
| Diaphragm | EP / PP blend | EP / PP blend |
| Check Valve | EPDM, FKM | EPDM, FKM |
| Liquid Temp Range | 4°C ~ 60°C (40°F ~ 140°F) | 4°C ~ 60°C (40°F ~ 140°F) |
| Certifications | CE RoHS IPX6 | CE RoHS IPX6 |
| Weight | 6.4 lbs (2.9 kg) | 7.6 lbs (3.5 kg) |
Overview Product Features
- Co-molded four and five chamber diaphragm design with cast aluminum lower housing for durability even at high pressures
- Heavy duty motor for long life
- Sealed motor and pressure switch for IPX6 ingress protection
- Flow rates up to 6 GPM (22.7 LPM) and pressures up to 70 psi (4.8 bar)
- Various elastomers for compatibility with a broad range of fluids including harsh and abrasive chemicals
- Versatile installation due to self-priming capability
- Able to run dry without damage
- Quick-connect ports for easy installation and servicing
Accommodating flow rates up to 6 GPM (22.7 LPM) and pressure up to 70 PSI (4.8 bar), the Flojet VersiJet Series is equipped to tackle a variety of industrial applications, including agricultural, construction, and disinfection and sanitization, that require spraying, fluid transfer, cooling, filtration, dispensing, and pressure boosting.
Backed by the industry-leading experience of Xylem’s Flojet brand and its diaphragm pump technology, the Flojet VersiJet Series is the product to trust if you need a robust and long-lasting pumping solution.

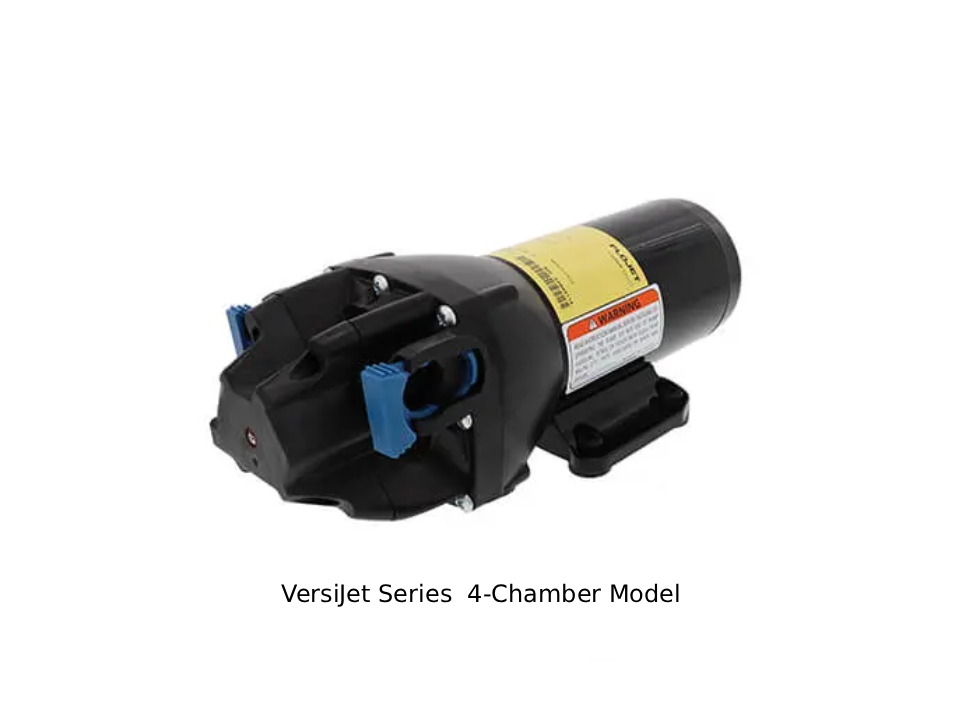

4-Chamber Model Numbers
- Q351F-118S-2P: 12VDC 3.5GPM (13.2 LPM) S/E 60PSI (4.1 BAR)
- Q351F-168S-2P: 12VDC 3.5GPM (13.2 LPM) S/V 60PSI (4.1 BAR)
- Q351F-16N7-2P: 12VDC 3.5GPM (13.2 LPM) S/V No Switch
- Q352F-118S-2P: 24VDC 3.5GPM (13.2 LPM) S/E 60PSI (4.1 BAR)
- Q352F-16N7-2P: 24VDC 3.5GPM (13.2 LPM) S/V No Switch
- Q451F-118S-2P: 12VDC 4.5GPM (17 LPM) S/E 60PSI (4.1 BAR)
- Q451F-168S-2P: 12VDC 4.5GPM (17 LPM) S/V 60PSI (4.1 BAR)
- Q452F-118S-2P: 24VDC 4.5GPM (17 LPM) S/E 60PSI (4.1 BAR)
- Q452F-168S-2P: 24VDC 4.5GPM (17 LPM) S/V 60PSI (4.1 BAR)
- Q40FF-118S-2P: 115VAC 4GPM (15.1 LPM) S/E 60PSI (4.1 BAR)
- Q40FF-168S-2P: 115VAC 4GPM (15.1 LPM) S/V 60PSI (4.1 BAR)
- Q40HF-118S-2P: 115VAC 4GPM (15.1 LPM) S/E 60PSI (4.1 BAR) PC

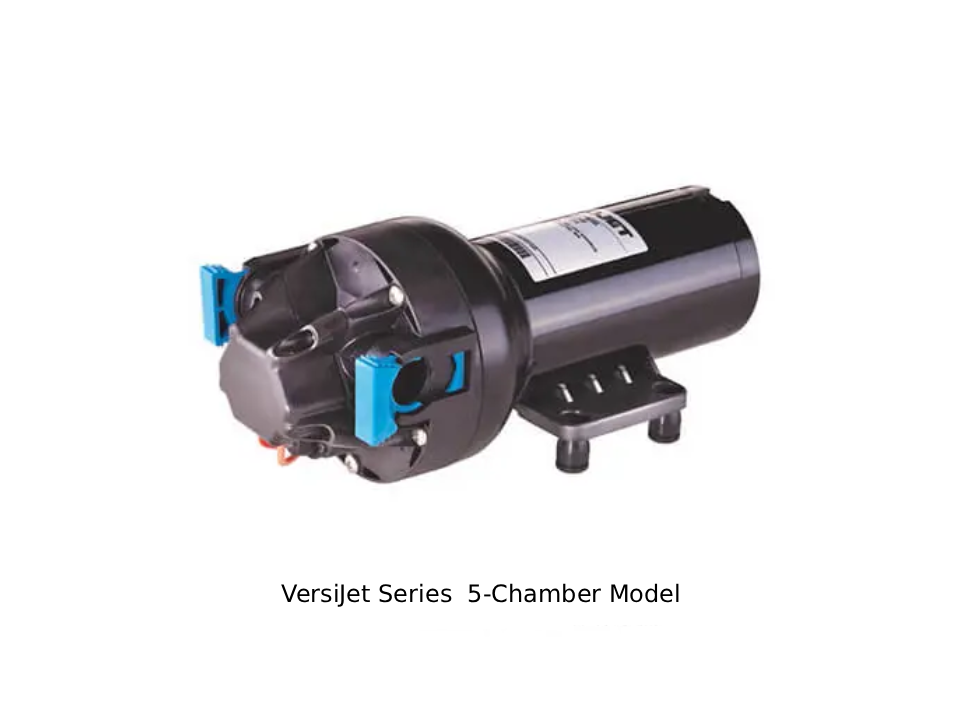

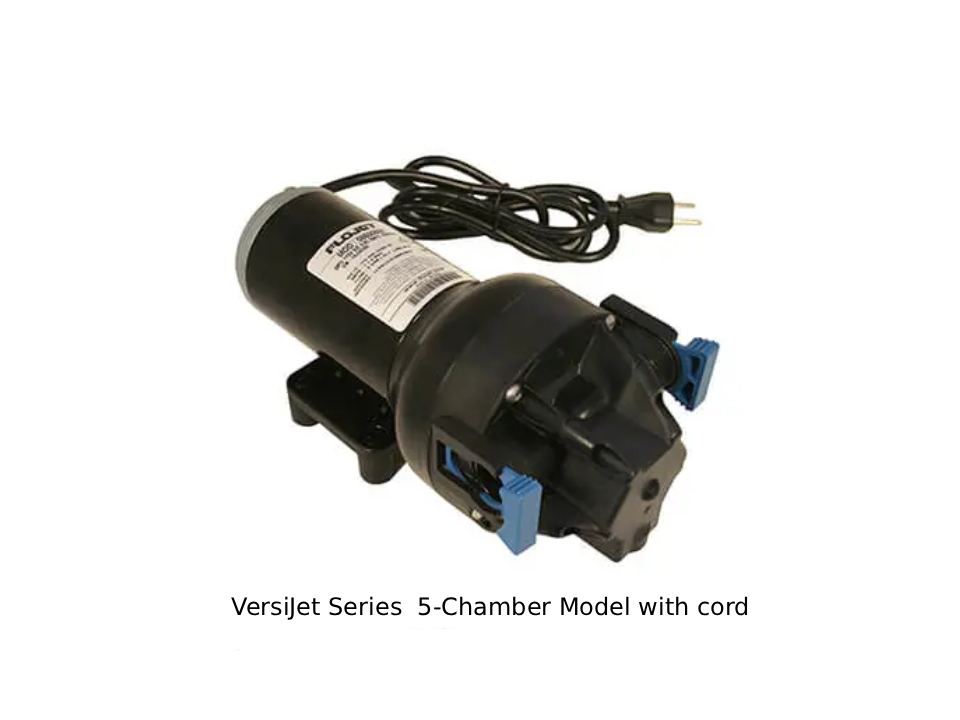

5-Chamber Model Numbers
- R8500134A: 12VDC 5GPM (18.9 LPM) S/V 70PSI (4.8 BAR)
- R8500144A: 12VDC 5GPM (18.9 LPM) S/E 70PSI (4.8 BAR)
- R8500344A: 24VDC 5GPM (18.9 LPM) S/E 70PSI (4.8 BAR)
- R8600134A: 12VDC 6GPM (22.7 LPM) S/V 70PSI (4.8 BAR)
- R8600144A: 12VDC 6GPM (22.7 LPM) S/E 70PSI (4.8 BAR)
- R8600334A: 24VDC 6GPM (22.7 LPM) S/V 70PSI (4.8 BAR)
- R8600344A: 24VDC 6GPM (22.7 LPM) S/E 70PSI (4.8 BAR)
- 08500044A: 115VAC 5GPM (18.9 LPM) S/E 45PSI (3.1 BAR)
- 08500500A: 115VAC 5GPM (18.9 LPM) S/E 20PSI (1.4 BAR) PC
- 08600044A: 115VAC 6GPM (22.7 LPM) S/E 35PSI (2.4 BAR)
- 08601044A: 115VAC 6GPM (22.7 LPM) S/E 35PSI (2.4 BAR)
- 08601500A: 115VAC 6GPM (22.7 LPM) S/E 35PSI (2.4 BAR) PC
- 08601501A: 115VAC 6GPM (22.7 LPM) S/V 35PSI (2.4 BAR) PC
