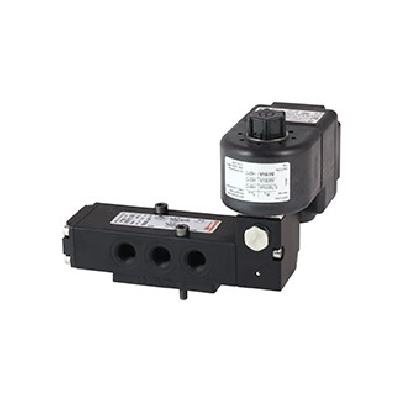

97105 series Namur interface solenoid valve, G1/4, 5/2 or 3/2, solenoid pilot / spring return
Norgren 卓越百年 | 驅動永續
廣泛的高端流體控制系列
- IMI Norgren 隸屬於 IMI plc 集團旗下 Industrial Automation 事業部，是全球氣動與流體控制元件的專業製造商，產品線涵蓋電磁閥、氣缸、FRL 空氣處理組件與比例控制元件等。IMI Norgren 的閥類產品廣泛應用於製程自動化、防爆環境與安全連鎖系統，並提供多項國際安全認證（DIN EN 161、IEC 61508 SIL、ATEX、IECEx、FM、CSA）
|
|
| 97105 Inline & NAMUR, 3/2, 5/2 & 5/3 indirect solenoid actuated spool valves | |
| Orifice | 6 mm (1/4")；8 mm (1/2") |
| Port size | G1/4、G1/4 NAMUR、1/4 NPT、1/4 NPT NAMUR、G1/2、G1/2 NAMUR、1/2 NPT、1/2 NPT NAMUR |
| Operation | Indirect solenoid operated spool valve |
| Operating pressure | 2.5–8 bar (36–116 psi) with internal air supply 0 ... 8 bar (0 ... 116 psi) with external air supply |
| Medium | Filtered, non-lubricated and dreid compressed air / instrument air / nitrogen /other non-flammable neutral dry fluids. |
| Body Material | Stainless steel |
| Seals | Nitrile rubber (NBR) |
| Approvals | DIN EN 161、DIN 3394、IEC 61508（多通道最高 SIL 3）、ATEX、IECEx、FM、CSA |
Product Description
The 97105 series from IMI Norgren is an indirect solenoid actuated spool valve, available in 3/2, 5/2 and 5/3 way functions, offered in both Inline and NAMUR interface configurations, with G-thread or NPT port sizes in 1/4" and 1/2".
Materials
Body materials: Aluminium anodized (suitable for high humidity, sulphuric, sodium, chloride or ammonia environments), brass 2.0401, and stainless steel 1.4404 (316L). Seals: NBR or HNBR.
NBR: -40 … +65°C (-40 … +149°F). HNBR: -25 … +80°C (-13 … +176°F). The catalog states this is depending on solenoid system. Air supply must be dry enough to avoid ice formation at temperatures below +2°C (35°F). For outdoor installations all connections must be protected against the penetration of moisture and a solenoid with IP66 protection must be used.
Approvals
Approval according to DIN EN 161, DIN 3394 and IEC 61508, multichannel up to SIL 3.
重要提醒：IEC 61508 SIL 認證僅適用於官方公告清單中「閥體 + 電磁閥」的特定組合，且該閥體須於產品標籤標示「IEC 61508 SIL」字樣。若搭配清單外之電磁閥，即使閥體標籤有標示，該組合仍不具備 SIL 認證效力。選型時務必核對 IMI Norgren 官網公告之最新版 SIL 證書清單。
)
