ICO3 Series , direct acting valve , 3/2 5/2 2/2 stainless steel ported valveI (Y013 Series)
MAXSEAL
Maxseal隸屬於英國 IMI Precision Engineering（IMI Plc）集團旗下，與 IMI Norgren、IMI Buschjost、IMI FAS、IMI Herion 同為集團核心儀控品牌之一。
Maxseal 專注於全不銹鋼（316L Stainless Steel）電磁閥、壓力調節器與整合式閥門系統的研發與製造，超過 50 年來持續為全球嚴苛環境提供高可靠度的流體控制解決方案。
科瑞流體控制為 IMI Norgren 在台授權代理商，提供 97105 系列電磁閥完整選型諮詢與技術支援服務。

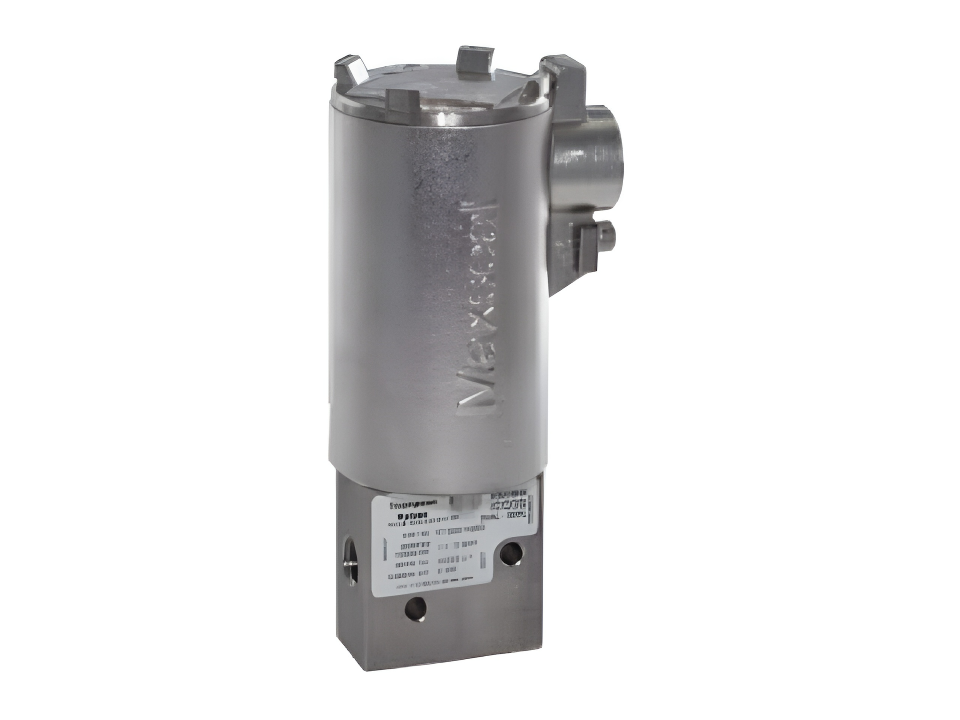

ICO3S Series - 2/2, 3/2 or 5/2 poppet valves Electromagnetically actuated, direct solenoid operated
| Medium | Hydraulic and pneumatic – customer to specify and confirm compatibility |
| Operation | 2/2 NC 2/2 NO 3/2 5/2 |
| Mounting position | Solenoid vertical |
| Flow | 0.6 Cv (8.7 Kv) … 3.3 Cv (46.4 Kv) |
| Port size |
Ports: G1/4 1/4 NPT G1/2 1/2 NPT
Type: NAMUR Manifold versions
|
| Operating pressure | 0 … 12 bar (0 … 174 psi) |
| Materials | Stainless steel 1.4404 (316 L) |
| O-rings seats & seals | NBR |
| Voltage |
DC: 24 Vd.c. 50 Vd.c. 110 Vd.c. 125 Vd.c.
AC: 24 Va.c. 120 Va.c. 220(240) Va.c.
|
[諮詢服務]Norgren 台灣代理 科瑞流體控制有限公司提供產品選型、 規格確認、報價及技術支援。如有其他規格或特殊選型需求，歡迎隨時聯繫我們！
Overview Product Features
- Port size: 1/4”... 1/2”(ISO G / NPT) Namur or manifold
- Direct acting solenoid valve
- 316L Stainless Steel
- High flow
- Low Power Direct Acting
- 12 bar inlet pressure
- Bubble Tight
- Reliable and long life,ideal for a one time installation
- Control of pneumatic or hydraulic operated equipment
- Certifications: ATEX, CSA, TR CU, IECEx, FM, CSA, CRN, CCOE, IN-METRO, KOSHA, NEPSI, PESO (CCOE), Japan ISHL
- SIL 2 or SIL 3 (SIL 3 In redundant Configuration)
- Environmental protection: NEMA 4X, IP66/X8
ICO3S - 3/2
- Y013AA1H2BS / Y013AA1H2JS
- Y013AA3H2BS / Y013AA3H2JS
- Y013PA1H2BS / Y013PA1H2JS
- Y013PA3H2BS / Y013PA3H2JS
- Y013CA1H2BS / Y013CA1H2JS
- Y013CA3H2BS / Y013CA3H2JS
