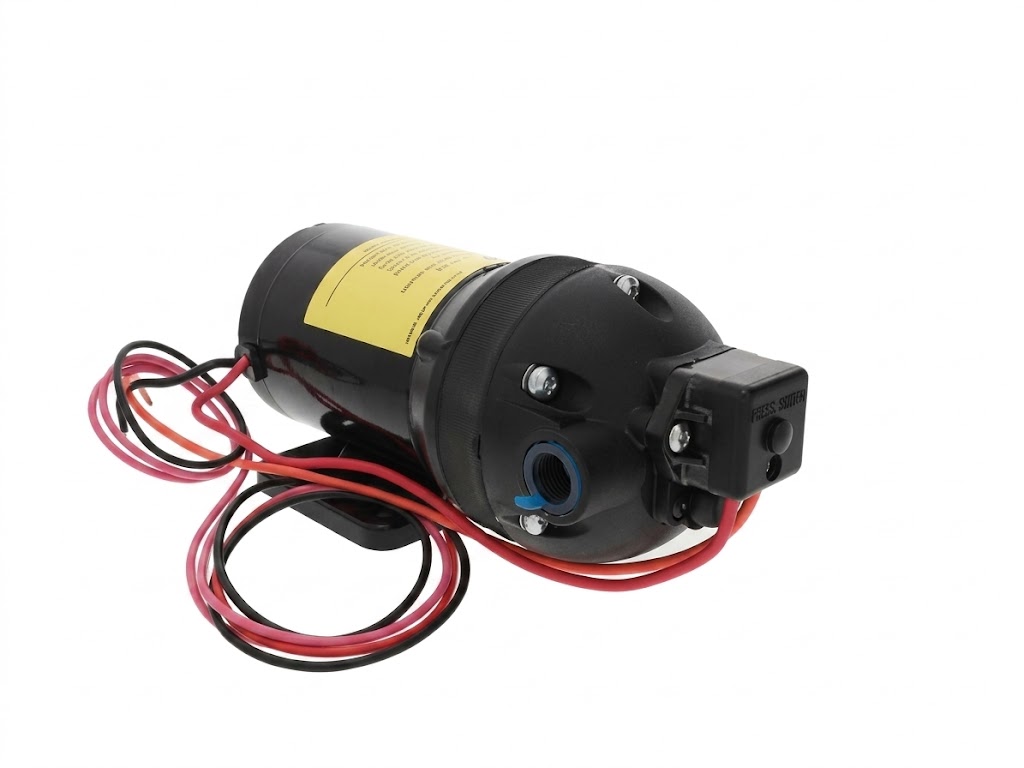

Flojet Triplex Series diaphragm pumps
Flojet
Flojet 為 Xylem 集團旗下品牌，自 1975 年成立以來，最初專注於當時新興的清潔機械市場所需之特殊應用幫浦（special application pumps）。
歷經逾 50 年發展，Flojet 已成長為全球小型幫浦、馬達與計量分配幫浦（dispensing pumps）的領導供應商，產品應用涵蓋飲料分配（beverage dispensing）到地板清潔（floor cleaning）等多元領域，持續為客戶提供高精度、高可靠度的流體控制解決方案。
| Triplex Series | |
| Pump Design | Motor-operated, 3-chamber diaphragm |
| Motor Type | Permanent magnet DC and rectified (PMDC)AC |
| Voltage | 12VDC, 24VDC, 36VDC, 115VAC |
| Flow Rate | 2GPM(7.6LPM) |
| Duty Cycle | INTERMITTENT |
| Max Liquid Temp | 4°C~60°C |
| Port Size Inlet/ Outlet | 3/8"NPTF |
| Pump Head | Glass-filled Polypropylene/ Glass-filled Nylon |
| Elastomers | Diaphragm-Santoprene, Check valves-Viton, EPDM |
| Certification | CE, UR,NSF components |
Overview Product Features
- Robust design with permanent magnet motor
- Long life co-injection mold diaphragm
- Efficient, quiet operation
- Self-priming up to 8 ft. (2.4 m)
- Runs dry without damage
Triplex Series Model Numbers:
- T151F-31N7-1P: 12VDC 1.5GPM (5.7LPM) S/E NSW BP50 (3.4 BAR)
- T151F-36N7-1P: 12VDC 1.5GPM (5.7LPM) S/V NSW BP50 (3.4 BAR)
- T151F-71CS-1P: 12VDC 1.5GPM (5.7LPM) S/E SW100 (6.9 BAR)
- T151F-76CS-1P: 12VDC 1.5GPM (5.7LPM) S/V SW100 (6.9 BAR)
- T152F-31N7-1P: 24VDC 1.5GPM (5.7LPM) S/E NSW BP50 (3.4 BAR)
- T152F-36N7-1P: 24VDC 1.5GPM (5.7LPM) S/V NSW BP50 (3.4 BAR)
- T152F-71CS-1P: 24VDC 1.5GPM (5.7LPM) S/E SW100 (6.9 BAR)
- T15CF-76CS-1P: 36VDC 1.5GPM (5.7LPM) S/V SW100 (6.9 BAR)
- T15FF-31N7-1P: 115VAC 1.5GPM (5.7LPM) S/E NSW BP50 (3.4 BAR)
- T15FF-36N7-1P: 115VAC 1.5GPM (5.7LPM) S/V NSW BP50 (3.4 BAR)
- T15FF-71CS-1P: 115VAC 1.5GPM (5.7LPM) S/E SW100 (6.9 BAR)
- T15FF-76CS-1P: 115VAC 1.5GPM (5.7LPM) S/V SW100 (6.9 BAR)
- T15HF-71CS-1P: 115VAC 1.5GPM (5.7LPM) S/E SW100 (6.9 BAR) PC
- T201F-318S-1P: 12VDC 2GPM (7.6LPM) S/E SW60 (4.1 BAR)
- T201F-31N7-1P: 12VDC 2GPM (7.6LPM) S/E NSW BP50 (3.4 BAR)
- T201F-368S-1P: 12VDC 2GPM (7.6LPM) S/V SW60 (4.1 BAR)
- T201F-36N7-1P: 12VDC 2GPM (7.6LPM) S/V NSW BP50 (3.4 BAR)
- T202F-318S-1P: 24VDC 2GPM (7.6LPM) S/E SW60 (4.1 BAR)
- T202F-368S-1P: 24VDC 2GPM (7.6LPM) S/V SW60 (4.1 BAR)
- T202F-76CS-1P: 24VDC 2GPM (7.6LPM) S/V SW100 (6.9 BAR)
- T20FF-318S-1P: 115VAC 2GPM (7.6LPM) S/E SW60 (4.1 BAR)
- T20FF-368S-1P: 115VAC 2GPM (7.6LPM) S/V SW60 (4.1 BAR)
- T20HF-318S-1P: 115VAC 2GPM (7.6LPM) S/E SW60 (4.1 BAR) PC
- T20HF-368S-1P: 115VAC 2GPM (7.6LPM) S/V SW60 (4.1 BAR) PC
- 03811033A: 115VAC 1.4GPM (5.3LPM) S/V SW150 (10.3 BAR)
- 03811043A: 115VAC 1.4GPM (5.3LPM) S/E SW150 (10.3 BAR)
- R3811133A: 12VDC 1.4GPM (5.3LPM) S/V SW150 (10.3 BAR)
- R3811143A: 12VDC 1.4GPM (5.3LPM) S/E SW150 (10.3 BAR)
- R3811333A: 24VDC 1.4GPM (5.3LPM) S/V SW150 (10.3 BAR)
- R3811343A: 24VDC 1.4GPM (5.3LPM) S/E SW150 (10.3 BAR)
Triplex Series | Road Roller Model Numbers
- R3B21500A: 12VDC 3.5GPM (13.2LPM) S/V NSW BP50 (3.4 BAR) IL
- R3B21501A: 24VDC 3.5GPM (13.2LPM) S/V NSW BP50 (3.4 BAR) IL
- R3B21502A: 12VDC 1.7GPM (6.4LPM) S/V NSW BP50 (3.4 BAR) IL
- R3B21503A: 24VDC 2GPM (7.6LPM) S/V NSW BP50 (3.4 BAR) IL
- R3B21507B: 24VDC 3.5GPM (13.2LPM) S/E NSW BP50 (3.4 BAR) IL
Triplex Series | Compact Model Numbers
- R3501136A: 12VDC 2GPM (7.6LPM) S/V SW60 (4.1 BAR)
- R3501146A: 12VDC 2GPM (7.6LPM) S/E SW60 (4.1 BAR)
- R3B01336A: 24VDC 2GPM (7.6 LPM) S/V NSW BP50 (3.4 BAR)
- R3B01342A: 24VDC 1.4GPM (5.3 LPM) S/E NSW BP50 (3.4 BAR)
Drawing
Triplex Series 60 PSI Switch Dimensional Drawing
Triplex Series 100 PSI Dimensional Drawing
Triplex Series Road Roller Dimensional Drawing
Triplex Series Compact Dimensional Drawing
Triplex Series 50 PSI Bypass Dimensional Drawing
Triplex Series 60 PSI Corded Dimensional Drawing
Manual
User Guide – Triplex Series Compact
Specification
