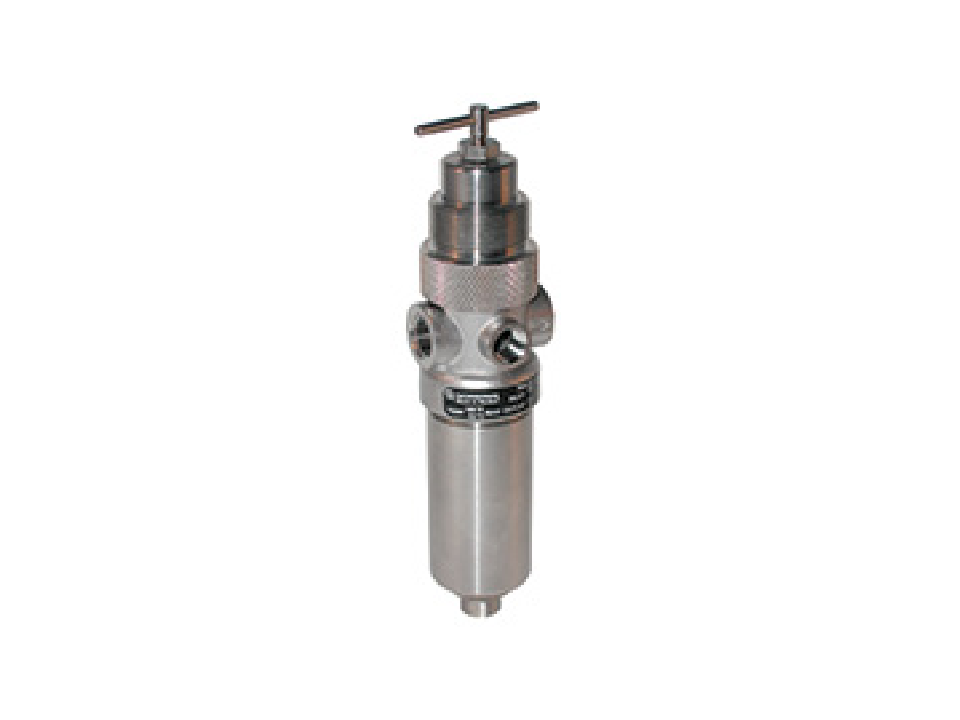

B05 Series stainless steel filter/regulator, 1/4 PTF, 5µm, 0.3-8.5 bar, manual drain, without gauge
Norgren 卓越百年 | 驅動永續
廣泛的高端流體控制系列
- IMI Norgren 為全球領先的氣動與流體控制元件製造商，隸屬 IMI Precision Engineering，產品線涵蓋過濾調壓組合（FRL）、電磁閥、氣缸與相關配件，廣泛應用於工業自動化、半導體製程、食品與製藥、海事及油氣產業。
- 科瑞流體控制為 IMI Norgren 授權代理商，提供原裝進口正品與完整技術選型服務。
|
|
| B05 Series stainless steel filter/regulator, 1/4 PTF, 5µm, 0.3-8.5 bar, manual drain, without gauge | |
| Medium | Compressed air |
| Operating Temperature | -34 ... 66 °C, -30 ... 150 °F |
| Port Size | 1/4 PTF |
| Drain Type | Manual |
| Gauge Port | 1/8 PTF |
| Filter Element | 5 μm |
| Adjustment | T-bar |
| Maximum Inlet Pressure | 17 bar, 250 psi |
| Outlet Pressure Adjustment | 0.3 ... 8.5 bar, 4 ... 123 psi |
| Relieving/Non-Relieving | Relieving |
| Flow | 7 dm3/s, 15 scfm |
| Materials | Stainless steel |
Product Description
Metallic parts meet NACE recommendations
Miniature high corrosion resistant design
Adjusting knob has snap-action lock
Particularly suitable for marine, petro-chemical, food processing, medical, dental and similar applications
Panel mounting facility
Port size: 1/4 PTF
Designed for use in corrosive environments
Adjusting knob has snap-action lock
Applications include marine environment, oil and gas production,chemical and industrial compressed air systems
)

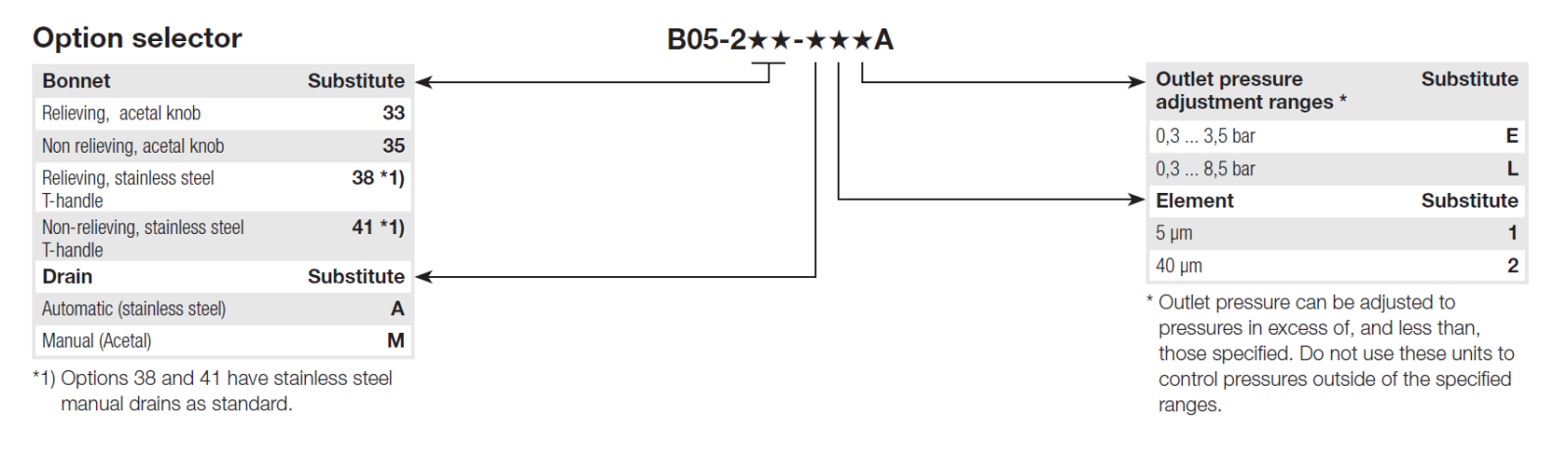

Mode：
B05-238-M1LA
B05-233-M1LA
B05-238-A1LA
