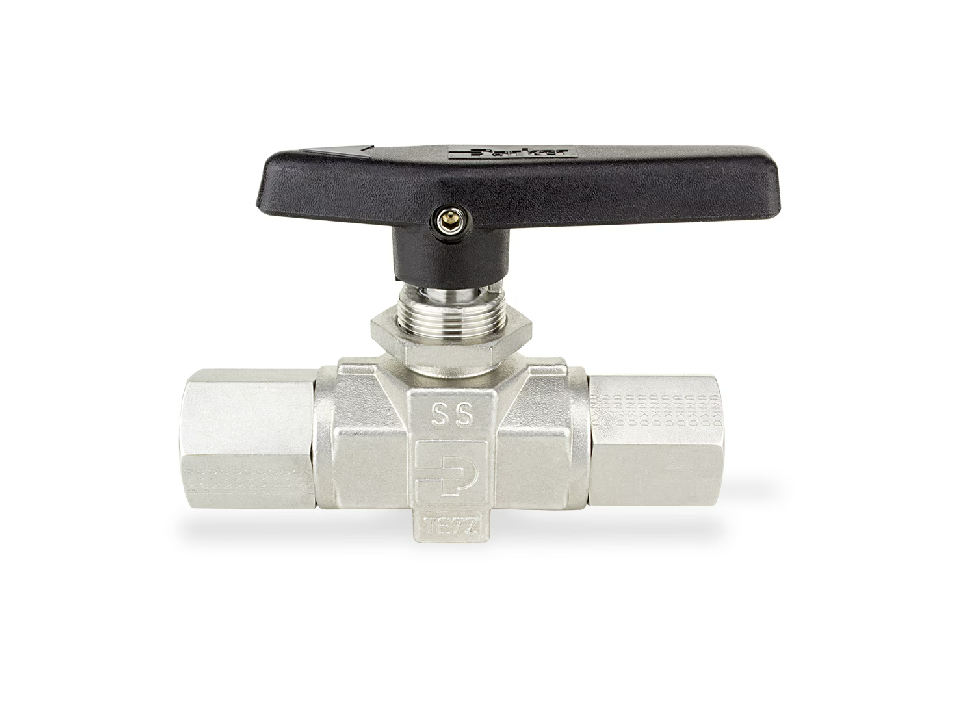

6,000 psi Ball Valve - B Series

Parker

Parker Hannifin 成立於 1917 年，為全球運動與控制技術解決方案領導廠商，產品線涵蓋流體控制、液壓、氣動、過濾、密封及工程材料等領域，廣泛應用於石化、化工、氫能、半導體與工業製造等產業，以創新技術協助客戶提升製程效率、系統可靠性與永續競爭力。

科瑞流體控制為 IMI Norgren、Parker Hannifin、Flojet/Xylem 等歐美工業流體控制品牌之台灣授權代理商，提供 Parker 球閥完整選型諮詢與技術支援服務。

Technical Specifications

Materials of Construction	316 Stainless Steel
Maximum Operating Pressure	103 barg (1500 psig)　／ 414 barg (6000 psig)
Maximum Operating Temp.	232 °C (450 °F)
Minimum Operating Temp.	-54 °C (-65 °F)
Flow Rate	0.70, 0.87, 0.93, 1.04, 2.34, 3.62, 6.42 Cv
Valve Type	2 Way 3 Way
Seat Material	PEEK PTFE
Connection 1 Size	1/8" ~ 3/8" NPT F NPT M Two Ferrule Compression Single Ferrule Compression
Connection 2 Size	1/8" ~ 3/8" NPT F NPT M Two Ferrule Compression Single Ferrule Compression

Product Description

Free floating ball design provides seat wear compensation.
Available in 316 stainless steel and brass construction. Limited selection available in Monel® Alloy 400 and Hastelloy® C-276 construction available upon request.
Micro-finished ball provides a positive seal.
Straight through flow path for minimum pressure drop.
Bi-directional flow.
Wide variety of US Customary and SI ports.
90° 2-Way and 180° 3-Way actuation
Panel mountable.
Adjustable PTFE stem seal can be maintained in-line.
Handle indicates flow direction.
Low operating torques.
Positive handle stops.
Color coded handles.
Optional pneumatic and electric actuation.
Optional live-loaded PTFE stem seals.
Optional non-adjustable O-ring stem seals.
Optional upstream and downstream drain models.
Optional stainless steel and extended handles.

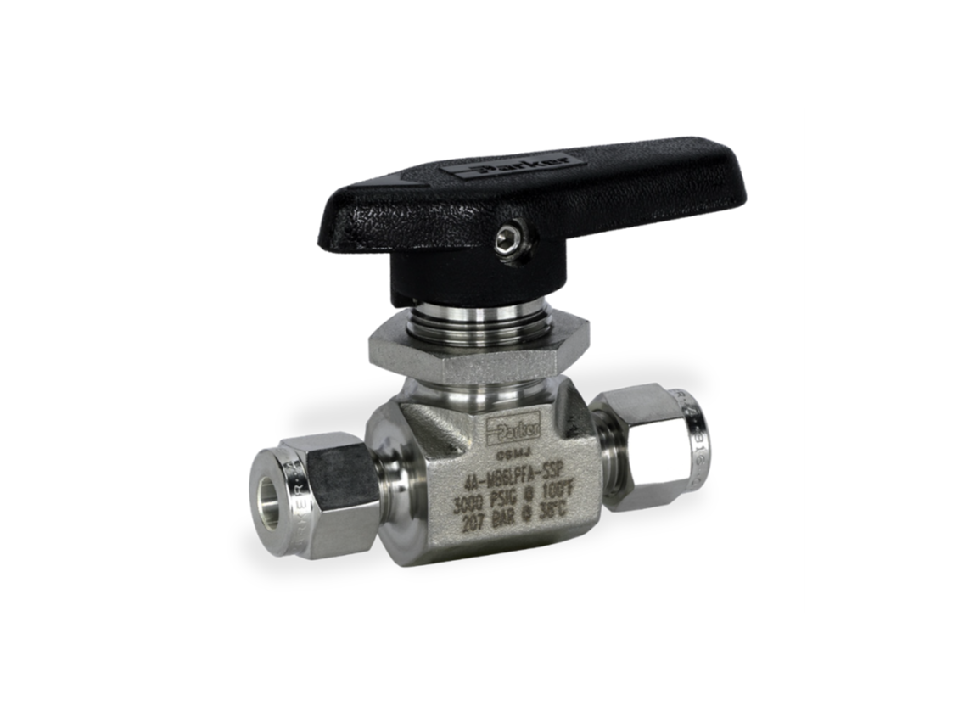

B Series Ball Valves

How to Order

Typical part number example: 4Z4F-B6LJ-SSP

(Part number is created based on customer selection of product parameters, see below for example)

The above example describes a B6L ball valve with a 4Z (1/4" CPI™ end connection for port 1) and a 4F (1/4" Female NPT end connection for port 2), J (PTFE seats), PTFE (standard stem and body seals), and SSP (316 Stainless Steel construction, with a panel mounting nut).

Example Breakdown

4Z ↓ Port 1

4F ↓ Port 2

— ↓ Port 3

B6L ↓ Valve Series

J ↓ Seat Material

(Blank) ↓ Seal Material

SSP ↓ Body Material

Ports 1, 2 and 3	Valve Series	Seat Material	Seal Material	Body Material
1A 1/16" A-LOK® 1Z 1/16" CPI™ 2A 1/8" A-LOK® 2Z 1/8" CPI™ 2F 1/8" Female NPT 2M 1/8" Male NPT 4A 1/4" A-LOK® 4Z 1/4" CPI™ 4M 1/4" Male NPT M3A 3mm A-LOK® M3Z 3mm CPI™	B2L B2X	J PTFE J2 PCTFE	(Blank) PTFE (Standard) V Fluorocarbon Rubber EPR Ethylene Propylene Rubber BN Nitrile Rubber KZ Highly Fluorinated Fluorocarbon Rubber LT Live-Loaded PTFE Packing with PTFE Seals VLT Live-Loaded PTFE Packing with Fluoro carbon Rubber Seals EPRLT Live-Loaded PTFE Packing with Ethylene Propylene Rubber Seals BNLT Live-Loaded PTFE Packing with Nitrile Rubber Seals KZLT Live-Loaded PTFE Packing with Highly Flourinated Fluoro-carbon Rubber Seals	SSP 316 Stainless Steel (w/ Panel Nut) MP Monel® Alloy 400 HCP Hastelloy® C-276 BP Brass
4A 1/4" A-LOK® 4Z 1/4" CPI™ 4F 1/4" Female NPT 4M 1/4" Male NPT 4Q 1/4" UltraSeal 4V 1/4" VacuSeal 6A 3/8" A-LOK® 6Z 3/8" CPI™ 6M 3/8" Male NPT 6Q 3/8" UltraSeal M6A 6mm A-LOK® M6Z 6mm CPI™ M8A 8mm A-LOK® M8Z 8mm CPI™ M10A 10mm A-LOK® M10Z 10mm CPI™	B6L B6X	J PTFE J2 PCTFE S2 Spring-Loaded PCTFE PKR PTFE Lubricated PEEK SPKR Spring-Loaded PTFE Lubricated PEEK
6F 3/8" Female NPT 8A 1/2" A-LOK® 8Z 1/2" CPI™ 8F 1/2" Female NPT 8M 1/2" Male NPT 8Q 1/2" UltraSeal 8V 1/2" VacuSeal 12Z 3/4" CPI™ 12F 3/4" Female NPT M12A 12mm A-LOK® M12Z 12mm CPI™ M16A 16mm A-LOK® M16Z 16mm CPI™	B8L B8X	J PTFE J2 PCTFE S2 Spring-Loaded PCTFE PKR PTFE Lubricated PEEK SPKR Spring-Loaded PTFE Lubricated PEEK

✏️ Model :

316 不鏽鋼 - B2 系列 (-SSP)

1A-B2LJ2-SSP 1A-B2LJ-SSP 1A-B2XJ2-SSP 1A-B2XJ-SSP 1Z-B2LJ2-SSP 1Z-B2LJ-SSP 2A-B2XJ2-SSP 2A-B2XJ-SSP 2Z-B2XJ2-SSP 2Z-B2XJ-SSP 2Z-B2LJ2-SSP 2Z-B2LJ-SSP 2F-B2LJ-SSP 2F-B2XJ2-SSP 2F-B2XJ-SSP 2M-B2LJ2-SSP 2M-B2LJ-SSP 2M-B2XJ2-SSP 2M-B2XJ-SSP 4A-B2LJ2-SSP 4A-B2LJ-SSP 4A-B2XJ2-SSP 4A-B2XJ-SSP 4M-B2LJ2-SSP 4M-B2LJ-SSP 4M-B2XJ2-SSP 4M-B2XJ-SSP 4Z-B2LJ2-SSP 4Z-B2LJ-SSP 4Z-B2XJ2-SSP 4Z-B2XJ-SSP 2F-B2LJ2-SSP

316 不鏽鋼 - B6 & B8 系列 (-SSP)

4A-B6LJ2-SSP 4F-B6LJ2-SSP 4Z-B6LJ2-SSP 4Z-B6LJ-SSP 4A-B6XJ-SSP 4Z-B6XJ-SSP 6A-B6LJ2-SSP 6M-B6LJ2-SSP 6Z-B6LJ-SSP 6A-B6XJ-SSP 6Z-B6XJ-SSP 8A-B8LJ2-SSP 8A-B8LJ-SSP 8F-B8LJ-SSP 8F-B8LJ2-SSP 8M-B8LJ-SSP 8Z-B8LJ-SSP 8Z-B8LJ2-SSP 8A-B8XJ2-SSP 8A-B8XJ-SSP 8Z-B8XJ2-SSP

黃銅本體 - B2 系列 (-BP)

1A-B2LJ2-BP 1A-B2LJ-BP 1A-B2XJ2-BP 1A-B2XJ-BP 1Z-B2LJ2-BP 1Z-B2LJ-BP 2A-B2XJ2-BP 2A-B2XJ-BP 2Z-B2XJ2-BP 2Z-B2XJ-BP 2Z-B2LJ2-BP 2Z-B2LJ-BP 2F-B2LJ2-BP 2F-B2LJ-BP 2F-B2XJ2-BP 2F-B2XJ-BP 2M-B2LJ2-BP 2M-B2LJ-BP 2M-B2XJ2-BP 2M-B2XJ-BP 4A-B2LJ2-BP 4A-B2LJ-BP 4A-B2XJ2-BP 4A-B2XJ-BP 4M-B2LJ2-BP 4M-B2LJ-BP 4M-B2XJ2-BP 4M-B2XJ-BP 4Z-B2LJ2-BP 4Z-B2LJ-BP 4Z-B2XJ2-BP 4Z-B2XJ-BP

黃銅本體 - B6 & B8 系列 (-BP)

4A-B6LJ2-BP 4A-B6XJ-BP 4F-B6LJ2-BP 4M-B6LJ2-BP 4Z-B6LJ2-BP 4Z-B6LJ-BP 4Z-B6XJ-BP 6A-B6LJ2-BP 6A-B6XJ-BP 6M-B6LJ2-BP 6Z-B6LJ2-BP 6Z-B6LJ-BP 6Z-B6XJ-BP 6F-B8LJ2-BP 8A-B8LJ2-BP 8A-B8LJ-BP 8A-B8XJ2-BP 8A-B8XJ-BP 8F-B8LJ2-BP 8F-B8LJ-BP 8M-B8LJ2-BP 8M-B8LJ-BP 8Z-B8LJ2-BP 8Z-B8LJ-BP 8Z-B8XJ2-BP 8Z-B8XJ-BP
