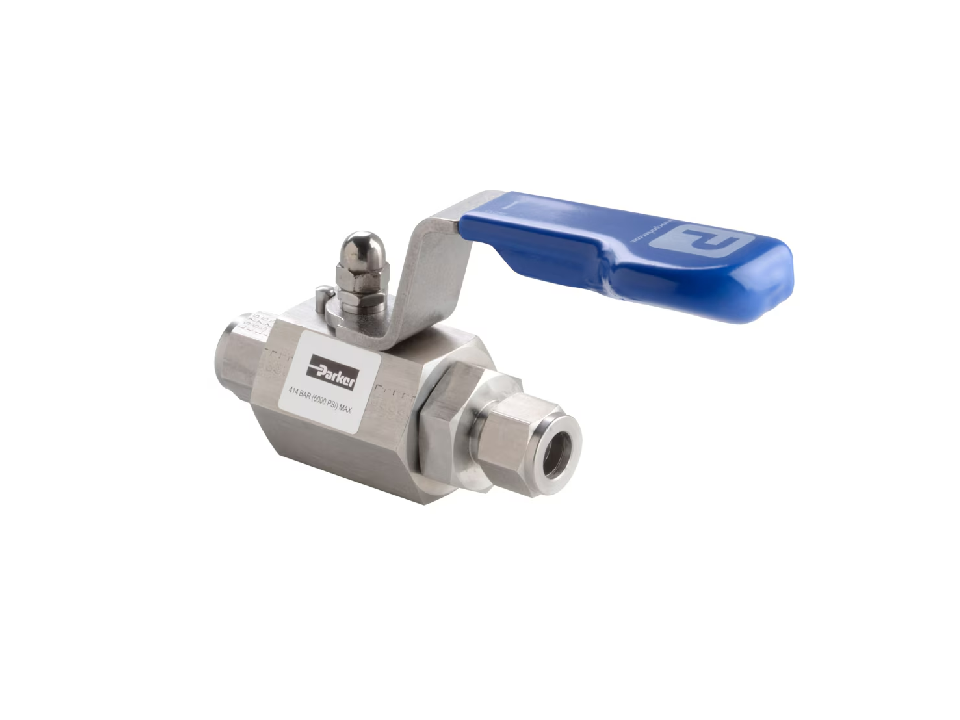

10,000 psi Ball Valve - Hi-Pro Series
Parker
Parker Hannifin 成立於 1917 年，為全球運動與控制技術解決方案領導廠商，產品線涵蓋流體控制、液壓、氣動、過濾、密封及工程材料等領域，廣泛應用於石化、化工、氫能、半導體與工業製造等產業，以創新技術協助客戶提升製程效率、系統可靠性與永續競爭力。
科瑞流體控制為 IMI Norgren、Parker Hannifin、Flojet/Xylem 等歐美工業流體控制品牌之台灣授權代理商，提供 Parker 球閥完整選型諮詢與技術支援服務。
Technical Specifications
| Product Type | Ball Valve | Maximum Operating Pressure |
10,000 psi (689.0 bar) |
| Actuation Type | Manual | Mounting Type | In-line / Bodies |
| Body Material | 316 Stainless Steel, 6Mo, Alloy 400, Alloy 625, Alloy C-276, Super Duplex, Duplex | Orifice Size | 10 mm 15 mm 20 mm 25 mm |
| Seat Material | PTFE PEEK | Shape | Ball |
| Connection Size |
Inch: 1/4" 3/8" 1/2" 5/8" 3/4" 7/8" 1"
Metric: 6 mm 8 mm 10 mm 12 mm 16 mm 18 mm 20 mm 22 mm 25 mm
|
Specifications Met | ISO 15848-1 NACE NORSOK |
| Connection Type |
Female NPT Male NPT Female BSPT
Single Ferrule Compression Fitting
Two Ferrule Compression Fitting
|
Configuration / Operation |
Configuration: N/A
Operation Type: N/A
|
如需產品選型建議或技術規格確認，歡迎隨時洽詢，我們將竭誠為您服務。
Product Description
Two piece body design - minimal leakage paths
4:1 Pressure boundary designed safety factor
Bubble tight shutoff
Floating ball principal with dynamic response seats featuring inherent self relief
Anti blowout stem
Low torque operation
PTFE Packing with PEEK Seats
Full hydrostatic and low pressure air tested
Connector thread environmentally sealed
Anti static
Certified to ISO15848-1 Class A, B and C
Hi-Pro Ball Valve - Standard Range Part Numbers
Catalog 4190-HBV (10mm / 15mm / 20mm / 25mm bore)
| Part Number (Class 2500) | Part Number (Class 4500) | Inlet | Outlet | A mm (inch) | B mm (inch) |
|---|---|---|---|---|---|
| Female × Female (NPT) | |||||
| HPBY*4FF | HPBY*4FFHP | 1/4" Female | 1/4" Female | 70.0 (2.76) | 161.5 (6.36) |
| HPBY*6FF | HPBY*6FFHP | 3/8" Female | 3/8" Female | 71.0 (2.80) | 162.0 (6.38) |
| HPBY*8FF | HPBY*8FFHP | 1/2" Female | 1/2" Female | 85.0 (3.35) | 166.5 (6.56) |
| Male × Female (NPT) | |||||
| HPBY*4M4F | HPBY*4M4FHP | 1/4" Male | 1/4" Female | 70.0 (2.76) | 161.5 (6.36) |
| HPBY*8M8F | HPBY*8M8FHP | 1/2" Male | 1/2" Female | 85.0 (3.35) | 166.5 (6.56) |
| A-LOK® × A-LOK® (Double Ferrule Compression) | |||||
| HPBY*4A | — | 1/4" A-LOK® | 1/4" A-LOK® | 95.0 (3.74) | 165.5 (6.52) |
| HPBY*6A | — | 3/8" A-LOK® | 3/8" A-LOK® | 99.1 (3.90) | 167.4 (6.59) |
| HPBY*8A | — | 1/2" A-LOK® | 1/2" A-LOK® | 104.7 (4.12) | 170.2 (6.70) |
| HPBY*M6A | — | 6mm A-LOK® | 6mm A-LOK® | 95.0 (3.74) | 165.5 (6.52) |
| HPBY*M8A | — | 8mm A-LOK® | 8mm A-LOK® | 96.6 (3.80) | 166.3 (6.55) |
| HPBY*M10A | — | 10mm A-LOK® | 10mm A-LOK® | 99.5 (3.92) | 167.6 (6.60) |
| HPBY*M12A | — | 12mm A-LOK® | 12mm A-LOK® | 104.7 (4.12) | 170.2 (6.70) |
| Part Number (Class 2500) | Part Number (Class 4500) | Inlet | Outlet | A mm (inch) | B mm (inch) |
|---|---|---|---|---|---|
| Female × Female (NPT) | |||||
| HPBX*8FF | HPBX*8FFHP | 1/2" Female | 1/2" Female | 97.2 (3.83) | 207.9 (8.18) |
| Male × Female (NPT) | |||||
| HPBX*8M8F | HPBX*8M8FHP | 1/2" Male | 1/2" Female | 102.9 (4.05) | 213.6 (8.41) |
| A-LOK® × A-LOK® (Double Ferrule Compression) | |||||
| HPBX*10A | — | 5/8" A-LOK® | 5/8" A-LOK® | 118.0 (4.65) | 212.6 (8.37) |
| HPBX*12A | — | 3/4" A-LOK® | 3/4" A-LOK® | 121.9 (4.80) | 214.6 (8.45) |
| HPBX*M16A | — | 16mm A-LOK® | 16mm A-LOK® | 120.0 (4.72) | 214.2 (8.43) |
| HPBX*M18A | — | 18mm A-LOK® | 18mm A-LOK® | 120.0 (4.72) | 214.2 (8.43) |
| HPBX*M20A | — | 20mm A-LOK® | 20mm A-LOK® | 120.0 (4.72) | 214.2 (8.43) |
| Part Number (Class 1500) | Part Number (Class 2500) | Inlet | Outlet | A mm (inch) | B mm (inch) |
|---|---|---|---|---|---|
| NPT Threaded Ends | |||||
| HPBW*12FFLP | HPBW*12FF | 3/4" Female | 3/4" Female | 89.8 (3.54) | 204.1 (8.03) |
| HPBW*12M12FLP | HPBW*12M12F | 3/4" Male | 3/4" Female | 102.5 (4.04) | 216.8 (8.53) |
| A-LOK® × A-LOK® (Double Ferrule Compression) | |||||
| HPBW*14ALP | — | 7/8" A-LOK® | 7/8" A-LOK® | 134.0 (5.28) | 221.1 (8.71) |
| HPBW*16ALP | — | 1" A-LOK® | 1" A-LOK® | 137.6 (5.42) | 222.9 (8.77) |
| HPBW*M22ALP | — | 22mm A-LOK® | 22mm A-LOK® | 133.3 (5.25) | 220.8 (8.69) |
| HPBW*M25ALP | — | 25mm A-LOK® | 25mm A-LOK® | 137.1 (5.40) | 222.7 (8.77) |
| Part Number (Class 1500) | Part Number (Class 2500) | Inlet | Outlet | A mm (inch) | B mm (inch) |
|---|---|---|---|---|---|
| NPT Threaded Ends | |||||
| HPBV*16FFLP | HPBV*16FF | 1" Female | 1" Female | 128.4 (5.05) | 260.3 (10.23) |
| HPBV*16M16FLP | HPBV*16M16F | 1" Male | 1" Female | 132.2 (5.20) | 264.1 (10.40) |
| A-LOK® × A-LOK® (Double Ferrule Compression) | |||||
| HPBV*16ALP | — | 1" A-LOK® | 1" A-LOK® | 179.0 (7.05) | 269.8 (10.62) |
| HPBV*M25ALP | — | 25mm A-LOK® | 25mm A-LOK® | 178.8 (7.04) | 269.8 (10.62) |
如需產品選型建議或技術規格確認，歡迎隨時洽詢，我們將竭誠為您服務
Model 清單分類 (HPBVB 系列常見規格)
1/4" 系列規格 (HPBVB4 系列)
HPBVB4A HPBVB4AFS HPBVB4ALP HPBVB4ALPFS HPBVB4ALPFSS HPBVB4ALPFSC HPBVB4FF HPBVB4FFFS HPBVB4FFFSNC HPBVB4FFLP HPBVB4FFLPFS HPBVB4FFLPFSNC HPBVB4FFHL HPBVB4FFNC HPBVB4M4F HPBVB4M4FFS HPBVB4M4FLP HPBVB4M4FLPFS
3/8" 系列規格 (HPBVB6 系列)
HPBVB6A HPBVB6AFS HPBVB6ALP HPBVB6ALPFS HPBVB6FF HPBVB6FFFS HPBVB6FFFSNC HPBVB6FFLP HPBVB6FFLPFS HPBVB6FFNC HPBVB6M6F HPBVB6M6FFS HPBVB6M6FLP HPBVB6M6FLPFS
1/2" 系列規格 (HPBVB8 系列)
HPBVB8A HPBVB8AFS HPBVB8ALP HPBVB8ALPFS HPBVB8ALPFSNC HPBVB8ALPPK HPBVB8FF HPBVB8FFFS HPBVB8FFFSNC HPBVB8FFHL HPBVB8FFLP HPBVB8FFLPFS HPBVB8FFLPFSNC HPBVB8FFLPPK HPBVB8FFNC HPBVB8M8F HPBVB8M8FFS HPBVB8M8FLP HPBVB8M8FLPFS HPBVB8M8FLPPK HPBVB8M8FNC
3/4" 系列規格 (HPBVB12 系列)
HPBVB12A HPBVB12AFS HPBVB12ALP HPBVB12ALPFS HPBVB12FF HPBVB12FFFS HPBVB12FFFSNC HPBVB12FFLP HPBVB12FFLPFS HPBVB12FFNC HPBVB12M12F HPBVB12M12FFS HPBVB12M12FLP
1" 系列規格 (HPBVB16 系列)
HPBVB16AFS HPBVB16ALP HPBVB16ALPFS HPBVB16ALPFSNC HPBVB16FF HPBVB16FFFS HPBVB16FFFSNC HPBVB16FFHL HPBVB16FFHLNC HPBVB16FFLP HPBVB16FFLPFS HPBVB16FFLPFSNC HPBVB16FFLPHL HPBVB16FFLPMH HPBVB16FFLPNC HPBVB16FFNC HPBVB16M16F HPBVB16M16FFS HPBVB16M16FFSNC HPBVB16M16FLP HPBVB16M16FLPFS HPBVB16M16FLPFSNC HPBVB16M16FLPNC HPBVB16M16FLPPK
公制管徑規格 (HPBVBM6 ~ HPBVBM25)
HPBVBM6A HPBVBM6AFS HPBVBM6ALP HPBVBM10A HPBVBM10AFS HPBVBM10ALP HPBVBM12A HPBVBM12AFS HPBVBM12ALP HPBVBM12ALPFS HPBVBM16A HPBVBM20A HPBVBM25A HPBVBM25AFS
