Parker Hannifin 成立於 1917 年，為全球運動與控制技術解決方案領導廠商，產品線涵蓋流體控制、液壓、氣動、過濾、密封、超高純度(Ultra-High-Purity)、醫療及分析儀器等領域，廣泛應用於石化、化學製程、氫能、半導體與工業製造等產業，以創新技術協助客戶提升製程效率、系統可靠性與永續競爭力。
專精開發 PFA材質的高純度流體管路接頭,產品線涵蓋擴口式(Parflare)、免工具鎖緊式(Pargrip)、熔接式(Parbond)及管牙式(Pipe Fittings)四大系列。
科瑞流體控制為 IMI Norgren、Parker Hannifin、Flojet/Xylem 等歐美工業流體控制品牌之台灣授權代理商，提供 Parker 調壓閥完整選型諮詢與技術支援服務。
| Product Series |
Parflare Series
熱熔擴口式
|
Pargrip Series
免工具鎖緊式
|
Parbond Series
熱熔焊接式
|
Pipe Series
管牙螺紋式
|
|---|---|---|---|---|
| Connection Method | 熱熔擴口 + 螺帽鎖緊 | 直接插入 + 螺帽鎖緊
內部卡套咬合，無需工具
|
熔融壓合 (永久接頭) | NPT 管牙螺紋
錐形螺紋機械旋緊
|
| Wetted Material | Virgin PFA Body | Virgin PFA Body PTFE Ferrule (卡套) |
Virgin PFA | Virgin PFA |
| Size Range | 1/4" ~ 1" | 1/8" ~ 3/4" | sizes up to 2" | 1/8" ~ 1" NPT |
| Pressure Range | 125 PSIG (8.6 bar) | 125 PSIG (8.6 bar) | 最高 250 PSIG (1/4") | 最高 150 PSIG (1/8"~3/8") |
| Required Tools |
|
無需特殊工具 |
|
|
Product Description

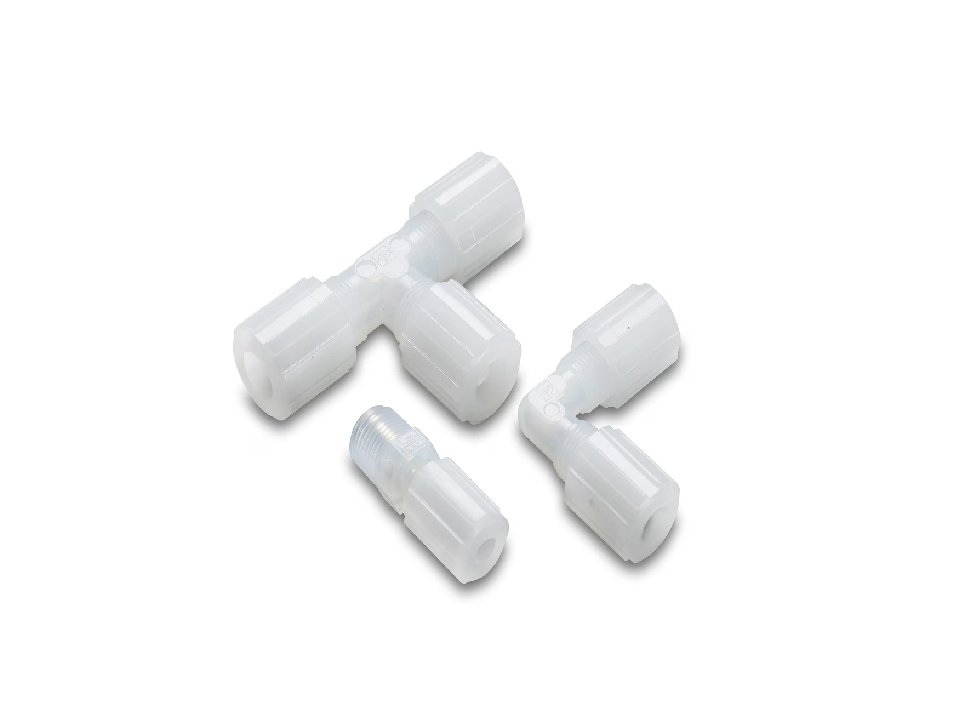

Parflare PFA Tube Fittings
Offers higher leak integrity than traditional threaded fittings
Can be used in side loading and vibrational applications
Available in a variety of sizes (1/4 inch to 1 inch) and configurations
PVDF nuts are standard, but can be supplied with PFA or Titanate-filled PFA nuts for specific applications
Redi-flare end connections save space and reduce assembly time
Maximum operating temperature: PVDF Nuts - up to 212°F (100°C); PFA Nuts - up to 266°F (130°C); HT Nut Assemblies: > 266°F (130°C)
Pressure range information
Pargrip PFA Tube Fittings
Ideally suited for use in highly corrosive environments and chemical handling applications
Fittings yield a leak-tight seal without the need for special tools
Double ferrule design ensures high leak integrity by grasping tightly around the tube without damaging the tube wall
Available in a variety of sizes (1/8 inch to 3/4 inch) and configurations (elbows, tees, reducers)
Redi-flare end connections save space and reduce assembly time and cost
Exacting design ensures performance and reliability at working pressure up to 125 psig

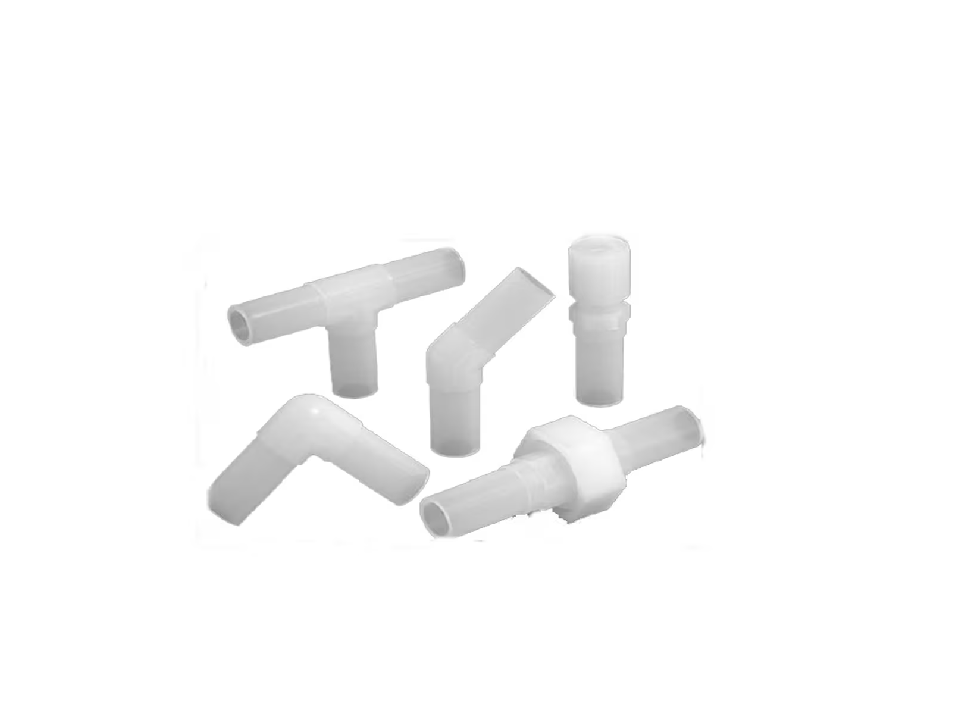

Parbond PFA Tube Fittings
Leak-tight seal minimizes particle generation and process contamination
Ideal for UHP, high-flow, minimal pressure drop piping systems
Available in a variety of sizes (1/4 inch to 2 inch) and configurations (elbow, tee, reducer, union)
High integrity fused weld connections yields better seal than conventional fittings
Redi-flare end connections save space and enable use in tight areas

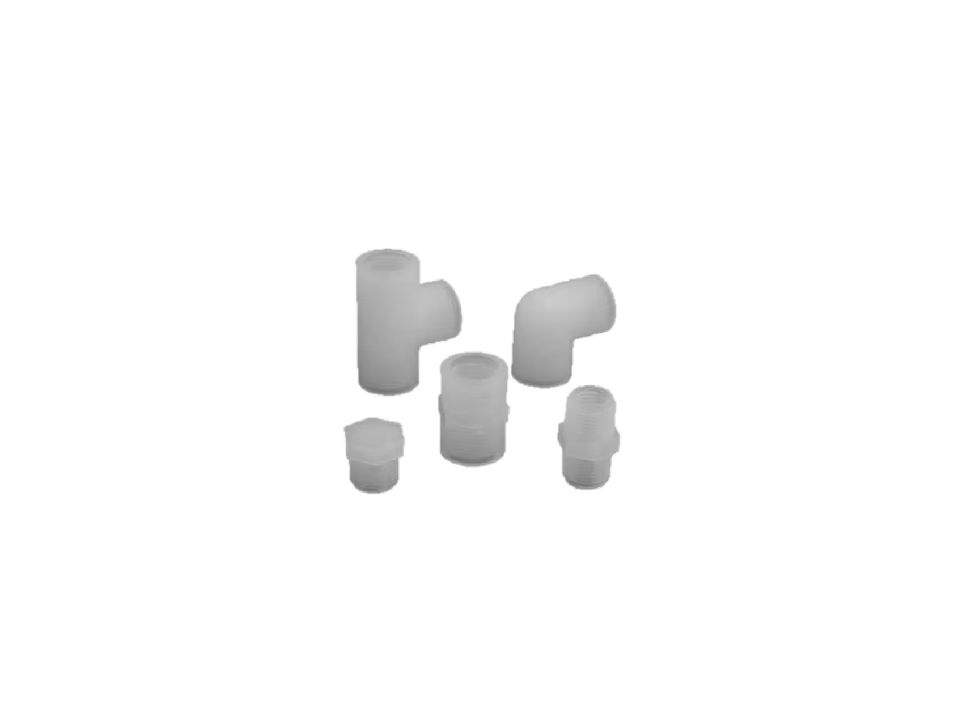

Threaded PFA Tube Fittings
Semiconductor-grade PFA body provides exceptional resistance to corrosion
Leak-tight seal minimizes particle generation and process contamination
Ideal for UHP and corrosive chemical applications
Available in sizes ranging from 1/8 inch to 1 inch
Variety of configurations reduces system complexity, assembly time, and cost
Maximum working pressure: 125 psig (for 1/8 inch and 3/8 inch fittings)
| Series (系列) | Fitting Type (型式代碼) | Tube Size (管徑代碼) | Pressure & Temp. (耐壓耐溫) | Nut Options (螺帽選配) |
|---|---|---|---|---|
| Parflare | FAMS : Male Straight 外牙直通 FAFS : Female Straight 內牙直通 FSC : Straight Union 雙通對接 FSCR : Reducer 異徑直通 FAME / FAFE / FEC : 彎頭類 FAMT / FBMT / FTC : 三通類 |
4 : 1/4" (O.D. 1/4" × I.D. 5/32") 6 : 3/8" (O.D. 3/8" × I.D. 1/4") 8 : 1/2" (O.D. 1/2" × I.D. 3/8") 12 : 3/4" (O.D. 3/4" × I.D. 5/8") 16 : 1" (O.D. 1" × I.D. 7/8") 20 : 1-1/4" (O.D. 1-1/4" × 1.10") |
最高 125 PSIG (8.6 bar) PVDF 螺帽：可達 100°C PFA 螺帽 (-T)：可達 130°C 高溫組件 (-HT)：可達 204°C |
(標準) : PVDF Nut -T : PFA Nut -HT : High Temp Nut -P : Panel Mount 面板型 |
[Straight Connectors] FAMS-42, FAMS-44, FAMS-46, FAMS-48, FAMS-64, FAMS-66, FAMS-68, FAMS-86, FAMS-88, FAMS-812, FAMS-128, FAMS-1212, FAMS-1616, FAFS-44, FAFS-66, FAFS-88, FAFS-1212, FSC-4, FSC-6, FSC-8, FSC-12, FSC-16, FSC-20, FSCR-64, FSCR-86, FSCR-128, FSCR-1612
[Elbow Connectors] FAME-42, FAME-44, FAME-64, FAME-66, FAME-86, FAME-88, FAME-1212, FAME-1616, FAFE-44, FAFE-66, FAFE-88, FAFE-1212, FEC-4, FEC-6, FEC-8, FEC-12, FEC-16, FEC-20, FECR-64, FECR-86, FECR-128, FECR-1612
[Tee Connectors] FAMT-444, FAMT-666, FAMT-888, FAMT-121212, FBMT-444, FBMT-666, FBMT-888, FBMT-121212, FTC-4, FTC-6, FTC-8, FTC-12, FTC-16, FTC-20, FTCR-664, FTCR-886, FTCR-12128, FTCR-161612
[Plugs & Accessories] FTPG-4, FTPG-6, FTPG-8, FTPG-12, FTPG-16, FCAP-4, FCAP-6, FCAP-8, FCAP-12, FCAP-16, 1213-0004, 1213-0006, 1213-0008, 1213-0012, 1213-0016, 1213-0204, 1213-0206, 1213-0208, 1213-0212, 1213-0216
| Series (系列) | Fitting Type (型式代碼) | Tube Size (管徑代碼) | Pressure & Temp. (耐壓耐溫) | Components (材質結構) |
|---|---|---|---|---|
| Pargrip | GAMS : Male Straight 外牙直通 GAFS : Female Straight 內牙直通 GSC : Straight Union 雙通對接 GSCR : Reducer 異徑直通 GAME / GAFE / GEC : 彎頭類 GAMT / GBMT / GTC : 三通類 |
2 : 1/8" (O.D. 1/8" × I.D. 1/16") 4 : 1/4" (O.D. 1/4" × I.D. 5/32") 6 : 3/8" (O.D. 3/8" × I.D. 1/4") 8 : 1/2" (O.D. 1/2" × I.D. 3/8") 12 : 3/4" (O.D. 3/4" × I.D. 5/8") |
最高 125 PSIG (8.6 bar) 操作溫度：最高達 177°C (350°F) 直接插管迫緊即可密封 |
接頭本體：High Purity PFA 密封卡套：PTFE Ferrule 咬合圈：ETFE Gripper 螺帽：PFA Nut (標準配備) |
[Straight Connectors] GAMS-22, GAMS-24, GAMS-42, GAMS-44, GAMS-46, GAMS-48, GAMS-64, GAMS-66, GAMS-68, GAMS-86, GAMS-88, GAMS-812, GAMS-1212, GAFS-22, GAFS-44, GAFS-66, GAFS-88, GAFS-1212, GSC-2, GSC-4, GSC-6, GSC-8, GSC-12, GSCR-42, GSCR-64, GSCR-84, GSCR-86, GSCR-128
[Elbow Connectors] GAME-24, GAME-42, GAME-44, GAME-64, GAME-66, GAME-68, GAME-86, GAME-88, GAME-1212, GAFE-22, GAFE-44, GAFE-64, GAFE-66, GAFE-88, GEC-2, GEC-4, GEC-6, GEC-8, GEC-12, GECR-42, GECR-64, GECR-84, GECR-86
[Tee Connectors] GAMT-222, GAMT-444, GAMT-646, GAMT-888, GBMT-222, GBMT-444, GBMT-666, GBMT-888, GTC-2, GTC-4, GTC-6, GTC-8, GTC-12, GTCR-224, GTCR-442, GTCR-466, GTCR-664, GTCR-882
[Plugs & Parts] GTPG-2, GTPG-4, GTPG-6, GTPG-8, GTPG-12, GCAP-4, GCAP-6, 1207-0023, 1207-0001, 1207-0002, 1207-0003, 1207-0004, 1022-0002, 1022-0004, 1022-0006, 1022-0008, 1022-0012, 1213-0302, 1213-0304, 1213-0306, 1213-0308, 1213-0312
| Series (系列) | Fitting Type (型式代碼) | Pipe Size (管徑代碼) | Pressure & Temp. (耐壓耐溫) | Joining Method (連接方式) |
|---|---|---|---|---|
| Parbond | BA : Adaptor (直通轉接頭) BR : Bond Reducer (異徑短節) BU : Bond Union (活接頭) BCAP : Bond Cap (焊接管帽) BE : Elbow (90° / 45° 焊接彎頭) BT / BTR : Tee (等徑/異徑焊接三通) |
4 : 1/4" (外徑 0.54") 8 : 1/2" (外徑 0.84") 12 : 3/4" (外徑 1.05") 16 : 1" (外徑 1.32") 32 : 2" (外徑 2.38") |
常溫耐壓最高達 250 PSIG (17.2 bar) 高溫可耐受至 204°C (400°F) 低死區、零洩漏流體設計 |
非接觸式熱熔焊接 (Fusion Weld) 本體：High Purity PFA |
[Adaptors & Flanges] BA-4MP4, BA-8MP8, BA-12MP12, BA-16MP16, BA-4FP4, BA-8FP8, BA-12FP12, BA-16FP16, BA-4F4, BA-6F4, BA-8F8, BA-12F12, BA-16F16, BA-8FL-0, BA-12FL-0, BA-16FL-0, BA-32FL-0, BA-8FL-1
[Reducers & Unions] BR-84, BR-128, BR-168, BR-1612, BR-328, BR-3212, BR-3216, BU-4, BU-8, BU-12, BU-16, BCAP-4, BCAP-8, BCAP-12, BCAP-16, BCAP-32
[Elbow Connectors] BE-4, BE-8, BE-12, BE-16, BE-32, BE-445, BE-845, BE-1245, BE-1645, BE-3245, BE-4F4, BE-6F4, BE-8F8, BE-12F12, BE-16F16
[Tee Connectors] BT-4, BT-8, BT-12, BT-16, BT-32, BT-884MP, BT-4F44F, BTR-848, BTR-884, BTR-12412, BTR-12812, BTR-12124, BTR-12128, BTR-121216, BTR-16164, BTR-16168
| Series (系列) | Fitting Type (型式代碼) | NPT Thread Size (尺寸代碼) | Pressure & Temp. (耐壓耐溫) | Assembly (安裝說明) |
|---|---|---|---|---|
| Pipe | P : Pipe Plug 六角塞頭 PN : Hex Nipple 雙外牙六角立布 PNR : Reducing Nipple 異徑立布 PB : Bushing 內外牙六角補芯 PC : Coupling 雙內牙六角套管 PFR : Female Reducer 內牙異徑接頭 PE / PSE : 90° 彎頭 / 街頭彎頭 PT : Equal Tee 等徑三通 |
2 : 1/8" NPT 4 : 1/4" NPT 6 : 3/8" NPT 8 : 1/2" NPT 12 : 3/4" NPT 16 : 1" NPT |
最高 150 PSIG (10.4 bar) 耐溫範圍可達 204°C (400°F) 一體車削全 PFA，抗化性極佳 |
需纏繞 PTFE 止洩帶 (氟聚合物對接 3.5~4 圈；對接其他金屬 4~5 圈) |
[Plugs & Nipples] P-2-P, P-4-P, P-6-P, P-8-P, P-12-P, P-16-P, PN-2-P, PN-4-P, PN-6-P, PN-8-P, PN-12-P, PN-16-P, PNR-42-P, PNR-64-P, PNR-84-P, PNR-86-P, PNR-128-P, PNR-1612-P
[Bushings & Couplings] PB-24-P, PB-42-P, PB-44-P, PB-46-P, PB-48-P, PB-412-P, PB-64-P, PB-68-P, PB-612-P, PB-84-P, PB-812-P, PB-816-P, PB-128-P, PB-1212-P, PB-1216-P, PC-2-P, PC-4-P, PC-6-P, PC-8-P, PC-12-P, PFR-42-P, PFR-82-P
[Elbows & Tees] PE-2-P, PE-4-P, PE-6-P, PE-8-P, PE-12-P, PSE-22-P, PSE-44-P, PSE-66-P, PSE-88-P, PSE-1212-P, PT-2-P, PT-4-P, PT-6-P, PT-8-P, PT-12-P, PT-16-P
