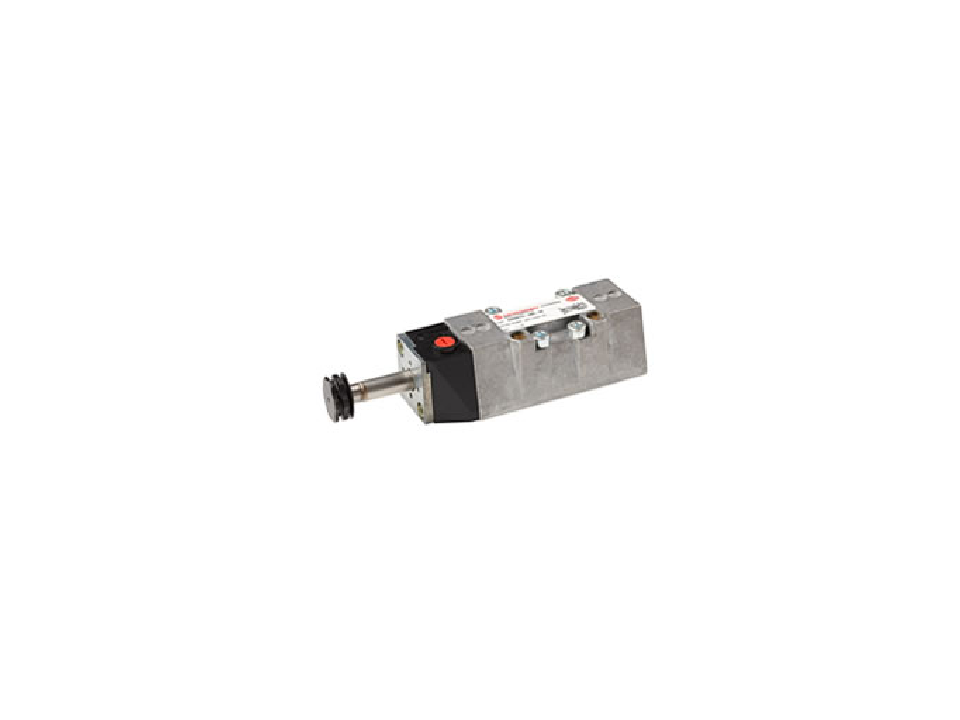

SXE Series / SXP Series - ISO Star solenoid valve｜IMI Norgren 台灣代理
Norgren
IMI Norgren 隸屬 IMI plc 旗下 Industrial Automation(工業自動化)事業群，為全球氣動與流體控制技術領導廠商，產品線涵蓋電磁閥、氣缸、空氣處理元件及真空技術，廣泛應用於工業自動化、包裝機械、生命科學及一般製造業等領域。
科瑞流體控制為 IMI Norgren 在台授權代理商,提供 ISO*STAR 系列電磁閥完整選型諮詢與技術支援服務。
| Product Type | ISO*STAR Spool Valves
5/2 及 5/3 閥門 (SXE / SXP 系列)
|
Operating Pressure | 10 bar 或 16 bar
電磁引導：最高 10 / 16 bar
氣動引導：最高 16 bar (232 psi) |
| Actuation Type | Solenoid Pilot Air Pilot | Valve Sizes | ISO 1 ISO 2 ISO 3
依 ISO 5599-1 底座安裝規範
|
| Body Material | Die-cast Aluminium
Spool & sleeve: hard anodised
aluminium with special PTFE coating |
Seals | NBR |
| Flow Rate |
ISO 1: 1230 ~ 1320 l/min
ISO 2: 2450 ~ 2520 l/min
ISO 3: 4400 ~ 4650 l/min
|
Operating Temperature |
電磁驅動: -15°C ~ +50°C
氣壓驅動: -15°C ~ +80°C
(低於 +2°C 需使用乾燥空氣防結冰)
|
| Medium | Compressed Air
經 40 μm 過濾，潤滑或非潤滑均可
|
Protection & Ratings | IP65 100% ED
電壓容許差：±10%
|
| Valve Functions | 5/2 5/3 | Approvals & Options | ATEX Manual Override
|
Product Description
Sub-base mounted, ISO 5599-1 sizes 1, 2 or 3
Specially coated glandless spool and sleeve for long trouble-free life
Integral flow regulators available on ISO 1 and 2 sizes for cylinder speed control
Low power solenoids feature
Manual override as standard

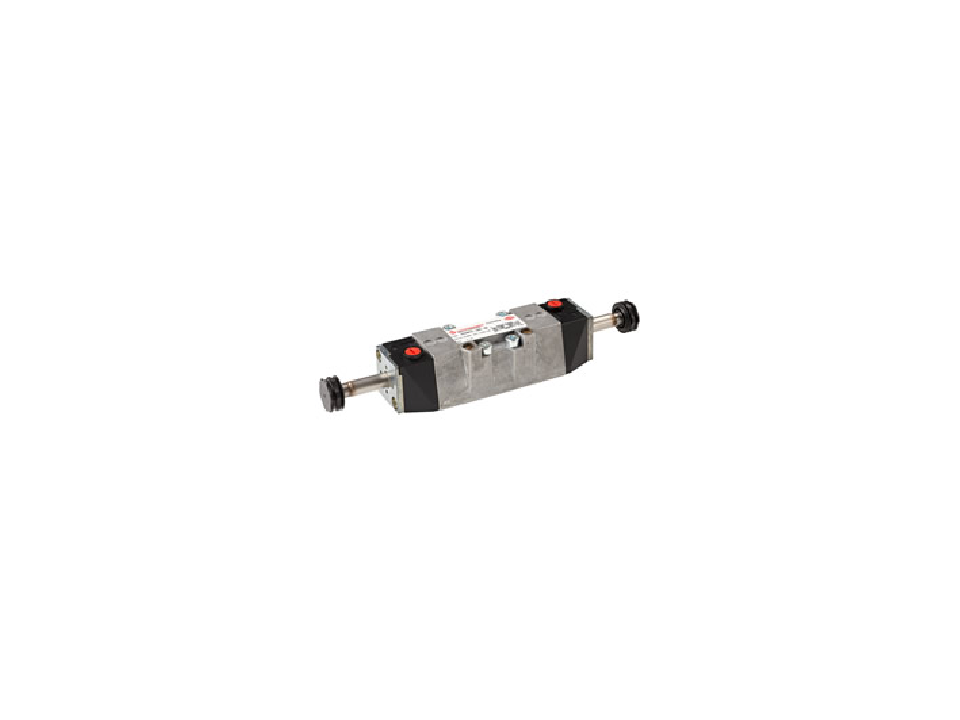

Impulse actuated bistable valve with detent mechanism

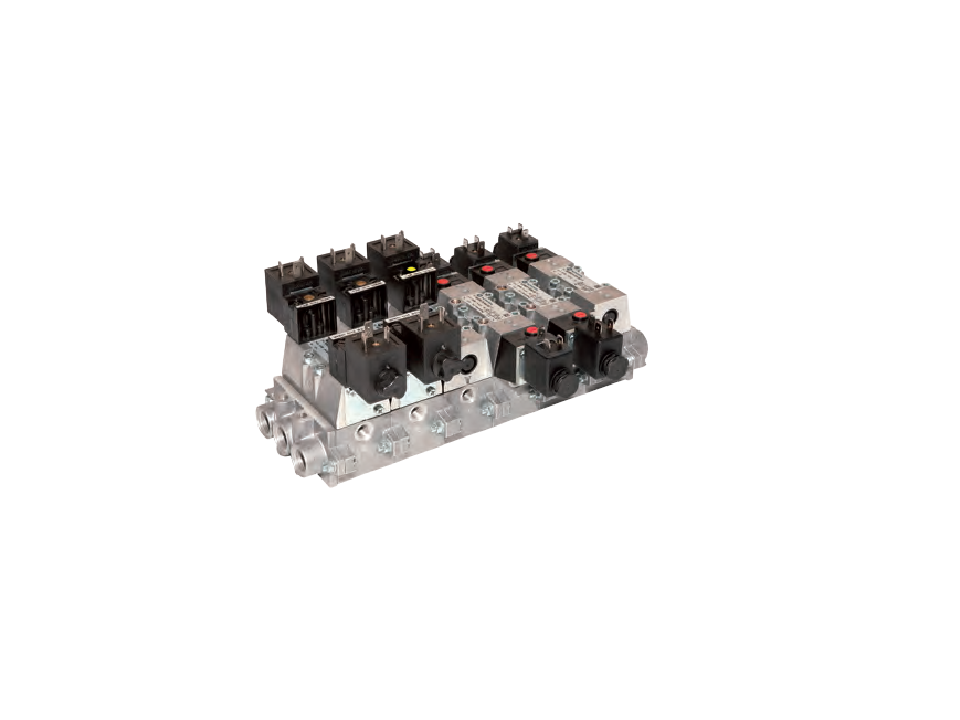

Wide range of sub-bases and accessories
It is possible to create valve and solenoid combinations which have Ex protection class ATEX (categories II 2 GD and II 3 GD) and other international approvals
.png)

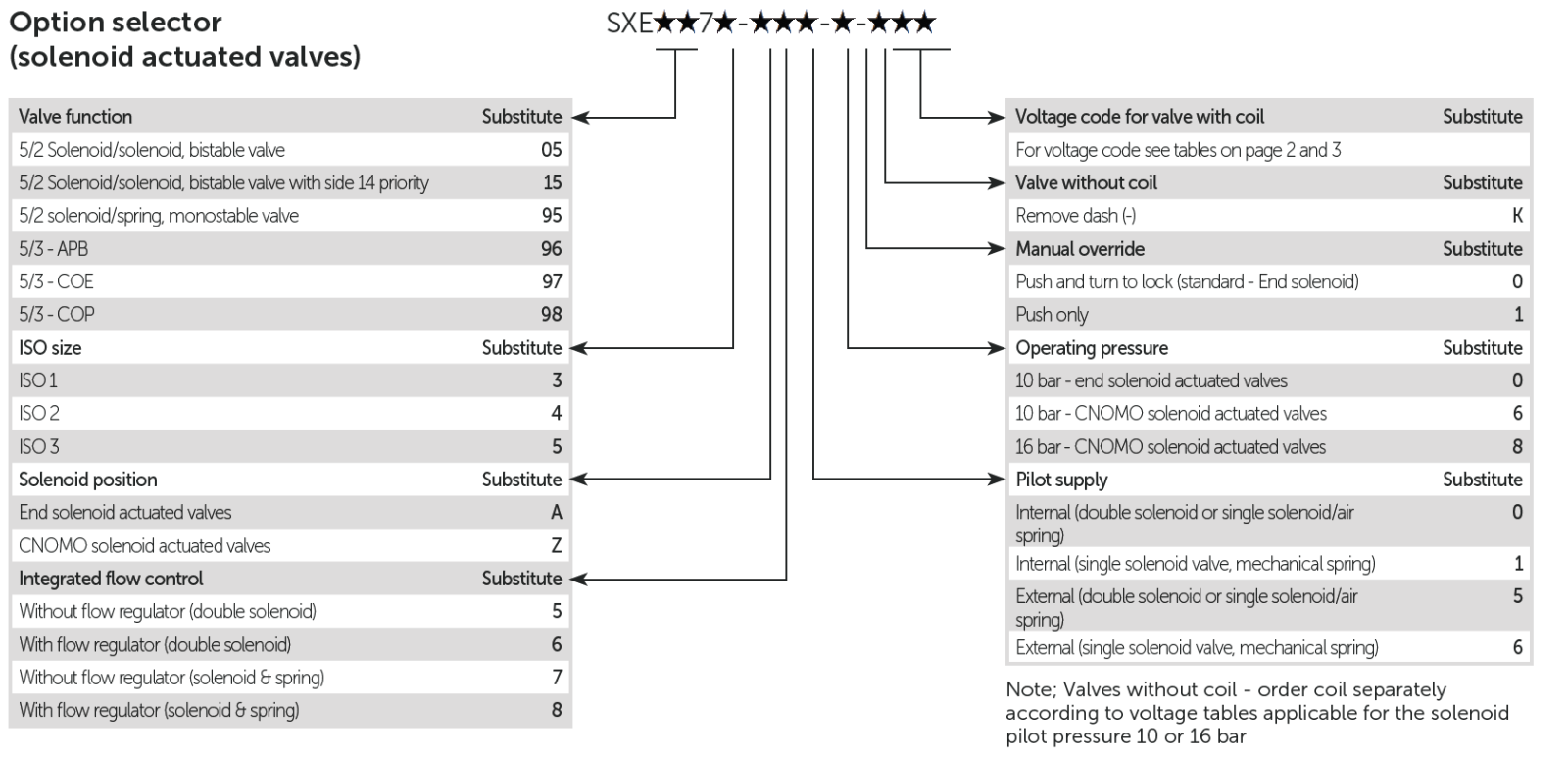

[5/2-Way Solenoid Valves (SXE957 / SXE057 / SXE157)] SXE9573-A70-00K, SXE9573-A71-00K, SXE9573-A75-00K, SXE9573-A76-00K, SXE9573-A80-00K, SXE9573-A81-00K, SXE9573-A85-00K, SXE9573-A86-00K, SXE9574-A70-00K, SXE9574-A71-00K, SXE9574-A75-00K, SXE9574-A76-00K, SXE9574-A80-00K, SXE9574-A81-00K, SXE9574-A85-00K, SXE9574-A86-00K, SXE9575-A70-00K, SXE9575-A71-00K, SXE9575-A75-00K, SXE9575-A76-00K, SXE0573-A50-00K, SXE0573-A55-00K, SXE0573-A60-00K, SXE0573-A65-00K, SXE0574-A50-00K, SXE0574-A55-00K, SXE0574-A60-00K, SXE0574-A65-00K, SXE0575-A50-00K, SXE0575-A55-00K, SXE9573-Z70-80K, SXE9573-Z71-80K, SXE9573-Z75-80K, SXE9573-Z76-80K, SXE9573-Z80-80K, SXE9573-Z81-80K, SXE9574-Z70-80K, SXE9574-Z71-80K, SXE9574-Z75-80K, SXE9574-Z76-80K, SXE9574-Z80-80K, SXE9574-Z81-80K, SXE9575-Z70-80K, SXE9575-Z71-80K, SXE9575-Z75-80K, SXE9575-Z76-80K, SXE0573-Z50-80K, SXE0573-Z55-80K, SXE0573-Z60-80K, SXE0573-Z65-80K, SXE0574-Z50-80K, SXE0574-Z55-80K, SXE0574-Z60-80K, SXE0574-Z65-80K, SXE0575-Z50-80K, SXE0575-Z55-80K, SXE1573-Z50-80K, SXE1573-Z55-80K, SXE1574-Z50-80K, SXE1574-Z55-80K, SXE1575-Z50-80K, SXE1575-Z55-80K
[5/3-Way Solenoid Valves (SXE967 / SXE977 / SXE987)] SXE9673-A50-00K, SXE9673-A55-00K, SXE9673-A60-00K, SXE9673-A65-00K, SXE9674-A50-00K, SXE9674-A55-00K, SXE9674-A60-00K, SXE9674-A65-00K, SXE9675-A50-00K, SXE9675-A55-00K, SXE9773-A50-00K, SXE9773-A55-00K, SXE9773-A60-00K, SXE9773-A65-00K, SXE9774-A50-00K, SXE9774-A55-00K, SXE9774-A60-00K, SXE9774-A65-00K, SXE9775-A50-00K, SXE9775-A55-00K, SXE9873-A50-00K, SXE9873-A55-00K, SXE9873-A60-00K, SXE9873-A65-00K, SXE9874-A50-00K, SXE9874-A55-00K, SXE9874-A60-00K, SXE9874-A65-00K, SXE9875-A50-00K, SXE9875-A55-00K, SXE9673-Z50-80K, SXE9673-Z55-80K, SXE9673-Z60-80K, SXE9673-Z65-80K, SXE9674-Z50-80K, SXE9674-Z55-80K, SXE9674-Z60-80K, SXE9674-Z65-80K, SXE9675-Z50-80K, SXE9675-Z55-80K, SXE9773-Z50-80K, SXE9773-Z55-80K, SXE9773-Z60-80K, SXE9773-Z65-80K, SXE9774-Z50-80K, SXE9774-Z55-80K, SXE9774-Z60-80K, SXE9774-Z65-80K, SXE9775-Z50-80K, SXE9775-Z55-80K, SXE9873-Z50-80K, SXE9873-Z55-80K, SXE9873-Z60-80K, SXE9873-Z65-80K, SXE9874-Z50-80K, SXE9874-Z55-80K, SXE9874-Z60-80K, SXE9874-Z65-80K, SXE9875-Z50-80K, SXE9875-Z55-80K
[Air Pilot Actuated Valves (SXP957 / SXP057 / SXP157 / SXP967 / SXP977 / SXP987)] SXP9573-170-00, SXP9573-180-00, SXP9574-170-00, SXP9574-180-00, SXP9575-170-00, SXP0573-170-00, SXP0573-180-00, SXP0574-170-00, SXP0574-180-00, SXP0575-170-00, SXP1573-170-00, SXP1574-170-00, SXP1575-170-00, SXP9673-170-00, SXP9673-180-00, SXP9674-170-00, SXP9674-180-00, SXP9675-170-00, SXP9773-170-00, SXP9773-180-00, SXP9774-170-00, SXP9774-180-00, SXP9775-170-00, SXP9873-170-00, SXP9873-180-00, SXP9874-170-00, SXP9874-180-00, SXP9875-170-00
[Sub-Bases & Sandwich Plates (底座與調壓板)] M/P19126, C/P19126, M/P19125, C/P19125, M/P19132, C/P19132, M/P19131, C/P19131, M/P19138, C/P19138, M/P19137, C/P19137, CQM/22152/3/21, CQM/22152/3/22, CQM/22152/3/23, CQM/22152/3/24, CQM/22152/3/27, CQM/22152/3/28, CQM/22152/3/29, CQM/22152/3/31, CQM/22253/3/21, CQM/22253/3/22, CQM/22253/3/23, CQM/22253/3/24, CQM/22253/3/27, CQM/22253/3/28, CQM/22253/3/31, CQM/22354/3/21, CQM/22354/3/22, CQM/22354/3/23, CQM/22354/3/26, FP8382, FP8482, FP8582, M/P43173, M/P43174, V71010-KB1, V71011-KB1, V71012-KB2, V71012-KB3, V71012-KB4, FP7050, FP7070
[Solenoid Coils & Plugs (線圈與插頭)] QM/48/12J/21, QM/48/13J/21, QM/48/14J/21, QM/48/15J/21, QM/48/18J/21, QM/48/19J/21, V10626-A12L, V10626-A13L, V10626-A14L, V10626-A16L, V10626-A18L, V10626-A19L, V10633-A22N, V10633-A23N, V10633-A24N, V10633-A26N, V10633-A28N, V10633-A29N, V10633-A32N, V10633-A33N, V10633-A37N, V10633-A84N, V10633-A88N, V10633-A89N, TM1042, TM1002, TM1047, TM1048, TM1542, TM1502, TM1547, TM1548, 0657868000000000, 0680003000000000, 0570275000000000, 306002400, 306123050, 306202400, 306325050, 304602400, 304711050, 304723050
[諮詢服務] 如有其他規格或特殊選型需求，歡迎隨時聯繫我們！
