IMI Norgren 隸屬 IMI plc 旗下 Industrial Automation(工業自動化)事業群，為全球氣動與流體控制技術領導廠商，產品線涵蓋電磁閥、氣缸、空氣處理元件及真空技術，廣泛應用於工業自動化、包裝機械、生命科學及一般製造業等領域。

科瑞流體控制為 IMI Norgren 在台授權代理商,提供 KIP 系列電磁閥完整選型諮詢與技術支援服務。





Technical Specifications
Product Type KIP Fluid Control Valves
Series 3		 Operating Pressure
2/2: 0 ~ 1,000 psig
3/2: 0 ~ 275 psig
(Vacuum Capable)
Actuation Type Solenoid Operated

 Switching Function
2/2 NC / NO
3/2 NC / NO / MP / DC
Body Material Brass Stainless Steel Internal Materials 430FR & 300 series CRES
Orifice Size Ø 1/32" ~ Ø 1/4"
(1/32, 3/64, 1/16, 5/64, 3/32, 1/8, 5/32, 3/16, 1/4)
 Flow Capacity (Cv)
2/2: 0.035 ~ 0.450
3/2: 0.035 ~ 0.415
Connection Size 1/8" NPTF 1/4" NPTF  Seal Options NBR FKM Neoprene EPR
Electrical & Coil 12/24 VDC, 24/120/240 VAC Approvals & Options RoHS NSF UL Recognized
可選低功耗 Low Watt (2.0W / 2.5W / 3.0W)
可選氧氣清潔 (Oxygen Clean)
科瑞流體控制為 IMI Norgren 在台授權代理商,提供 KIP 系列電磁閥完整選型諮詢與技術支援服務~
Product Description
  •  2/2 and 3/2 direct-acting design for air, liquid, and vacuum control; contact the manufacturer's technical support for vacuum ratings
  •  Operating pressure: 0–1000 psig (2/2), 0–275 psig (3/2)
  •  Cv 0.035–0.450 (2/2) and 0.035–0.415 (3/2); orifice sizes up to 1/4" in the option selector
  •  Connection: 1/8" NPTF, 1/4" NPTF, or cartridge configuration with an IP6K9K coil
  •  IP6K9K version uses an over-molded housing (Housing 0) and a coil type 70 (Class H, TE 776428-2 connector)
  •  IP6K9K version is available only with seal types 01/03/07/16 and 12/24 VDC; low-watt versions are not available
  •  Housing options: over-molded, grommet, 1/2" NPT conduit, yoke, grommet with bracket, and slotted
  •  Electrical connection: 24" flying leads or 1/4" spade terminal; AC and DC coils available, contact technical support for rectified coil options
  •  Functions: 2/2 NO and NC; 3/2 NO, NC, Multi-purpose (MP), and Directional Control (DC)
  •  Voltages: 12VDC, 24VDC, 24/60VAC, 120/60VAC, 240/60VAC; 7 W nominal, continuous duty
  •  Brass or stainless steel body; internal wetted parts in 430FR and 300 series stainless steel; multiple seal materials available
  •  Optional prefixes: NSF certified, UL recognized, oxygen clean, and low-watt (not available on the IP6K9K version)
  •  Custom fittings or electrical hardware available on request, subject to minimum order quantity (MOQ)
  •





✏️ Model 快速對照清單

[2/2-Way Normally Closed (2WNC)] 300010-12VDC, 300010-24VDC, 300011-12VDC, 300011-24VDC, 300012-12VDC, 300012-24VDC, 300013-12VDC, 300013-24VDC, 300014-12VDC, 300014-24VDC, 300015-12VDC, 300015-24VDC, 300016-12VDC, 300016-24VDC, 300017-12VDC, 300017-24VDC, 300018-12VDC, 300018-24VDC, 300110-12VDC, 300110-24VDC, 300111-12VDC, 300111-24VDC, 300112-12VDC, 300112-24VDC, 300113-12VDC, 300113-24VDC, 300114-12VDC, 300114-24VDC, 300115-12VDC, 300115-24VDC, 300116-12VDC, 300116-24VDC, 300117-12VDC, 300117-24VDC, 300118-12VDC, 300118-24VDC, 341010-12VDC, 341010-24VDC, 341010-24-60, 341010-120-60, 341010-240-60, 341011-12VDC, 341011-24VDC, 341011-24-60, 341011-120-60, 341011-240-60, 341012-12VDC, 341012-24VDC, 341012-24-60, 341012-120-60, 341012-240-60, 341013-12VDC, 341013-24VDC, 341013-24-60, 341013-120-60, 341013-240-60, 341014-12VDC, 341014-24VDC, 341014-24-60, 341014-120-60, 341014-240-60, 341015-12VDC, 341015-24VDC, 341015-24-60, 341015-120-60, 341015-240-60, 341016-12VDC, 341016-24VDC, 341016-24-60, 341016-120-60, 341016-240-60, 341017-12VDC, 341017-24VDC, 341017-24-60, 341017-120-60, 341017-240-60, 341018-12VDC, 341018-24VDC, 341018-24-60, 341018-120-60, 341018-240-60, 341110-12VDC, 341110-24VDC, 341110-24-60, 341110-120-60, 341110-240-60, 341111-12VDC, 341111-24VDC, 341111-24-60, 341111-120-60, 341111-240-60, 341112-12VDC, 341112-24VDC, 341112-24-60, 341112-120-60, 341112-240-60, 341113-12VDC, 341113-24VDC, 341113-24-60, 341113-120-60, 341113-240-60, 341114-12VDC, 341114-24VDC, 341114-24-60, 341114-120-60, 341114-240-60, 341115-12VDC, 341115-24VDC, 341115-24-60, 341115-120-60, 341115-240-60, 341116-12VDC, 341116-24VDC, 341116-24-60, 341116-120-60, 341116-240-60, 341117-12VDC, 341117-24VDC, 341117-24-60, 341117-120-60, 341117-240-60, 341118-12VDC, 341118-24VDC, 341118-24-60, 341118-120-60, 341118-240-60, 351010-12VDC, 351010-24VDC, 351010-24-60, 351010-120-60, 351010-240-60, 351011-12VDC, 351011-24VDC, 351011-24-60, 351011-120-60, 351011-240-60, 351012-12VDC, 351012-24VDC, 351012-24-60, 351012-120-60, 351012-240-60, 351013-12VDC, 351013-24VDC, 351013-24-60, 351013-120-60, 351013-240-60, 351014-12VDC, 351014-24VDC, 351014-24-60, 351014-120-60, 351014-240-60, 351015-12VDC, 351015-24VDC, 351015-24-60, 351015-120-60, 351015-240-60, 351016-12VDC, 351016-24VDC, 351016-24-60, 351016-120-60, 351016-240-60, 351017-12VDC, 351017-24VDC, 351017-24-60, 351017-120-60, 351017-240-60, 351018-12VDC, 351018-24VDC, 351018-24-60, 351018-120-60, 351018-240-60, 351110-12VDC, 351110-24VDC, 351110-24-60, 351110-120-60, 351110-240-60, 351111-12VDC, 351111-24VDC, 351111-24-60, 351111-120-60, 351111-240-60, 351112-12VDC, 351112-24VDC, 351112-24-60, 351112-120-60, 351112-240-60, 351113-12VDC, 351113-24VDC, 351113-24-60, 351113-120-60, 351113-240-60, 351114-12VDC, 351114-24VDC, 351114-24-60, 351114-120-60, 351114-240-60, 351115-12VDC, 351115-24VDC, 351115-24-60, 351115-120-60, 351115-240-60, 351116-12VDC, 351116-24VDC, 351116-24-60, 351116-120-60, 351116-240-60, 351117-12VDC, 351117-24VDC, 351117-24-60, 351117-120-60, 351117-240-60, 351118-12VDC, 351118-24VDC, 351118-24-60, 351118-120-60, 351118-240-60

[2/2-Way Normally Open (2WNO)] 300020-12VDC, 300020-24VDC, 300021-12VDC, 300021-24VDC, 300022-12VDC, 300022-24VDC, 300023-12VDC, 300023-24VDC, 300120-12VDC, 300120-24VDC, 300121-12VDC, 300121-24VDC, 300122-12VDC, 300122-24VDC, 300123-12VDC, 300123-24VDC, 341020-12VDC, 341020-24VDC, 341020-24-60, 341020-120-60, 341020-240-60, 341021-12VDC, 341021-24VDC, 341021-24-60, 341021-120-60, 341021-240-60, 341022-12VDC, 341022-24VDC, 341022-24-60, 341022-120-60, 341022-240-60, 341023-12VDC, 341023-24VDC, 341023-24-60, 341023-120-60, 341023-240-60, 341120-12VDC, 341120-24VDC, 341120-24-60, 341120-120-60, 341120-240-60, 341121-12VDC, 341121-24VDC, 341121-24-60, 341121-120-60, 341121-240-60, 341122-12VDC, 341122-24VDC, 341122-24-60, 341122-120-60, 341122-240-60, 341123-12VDC, 341123-24VDC, 341123-24-60, 341123-120-60, 341123-240-60, 351020-12VDC, 351020-24VDC, 351020-24-60, 351020-120-60, 351020-240-60, 351021-12VDC, 351021-24VDC, 351021-24-60, 351021-120-60, 351021-240-60, 351022-12VDC, 351022-24VDC, 351022-24-60, 351022-120-60, 351022-240-60, 351023-12VDC, 351023-24VDC, 351023-24-60, 351023-120-60, 351023-240-60, 351120-12VDC, 351120-24VDC, 351120-24-60, 351120-120-60, 351120-240-60, 351121-12VDC, 351121-24VDC, 351121-24-60, 351121-120-60, 351121-240-60, 351122-12VDC, 351122-24VDC, 351122-24-60, 351122-120-60, 351122-240-60, 351123-12VDC, 351123-24VDC, 351123-24-60, 351123-120-60, 351123-240-60

[3/2-Way Normally Closed (3WNC Free Vent & Line Connect)] 300030-12VDC, 300030-24VDC, 300031-12VDC, 300031-24VDC, 300032-12VDC, 300032-24VDC, 300033-12VDC, 300033-24VDC, 300034-12VDC, 300034-24VDC, 300035-12VDC, 300035-24VDC, 300036-12VDC, 300036-24VDC, 300037-12VDC, 300037-24VDC, 300038-12VDC, 300038-24VDC, 300130-12VDC, 300130-24VDC, 300131-12VDC, 300131-24VDC, 300132-12VDC, 300132-24VDC, 300133-12VDC, 300133-24VDC, 300134-12VDC, 300134-24VDC, 300135-12VDC, 300135-24VDC, 300136-12VDC, 300136-24VDC, 300137-12VDC, 300137-24VDC, 300138-12VDC, 300138-24VDC, 300040-12VDC, 300040-24VDC, 300041-12VDC, 300041-24VDC, 300042-12VDC, 300042-24VDC, 300043-12VDC, 300043-24VDC, 300044-12VDC, 300044-24VDC, 300045-12VDC, 300045-24VDC, 300046-12VDC, 300046-24VDC, 300047-12VDC, 300047-24VDC, 300048-12VDC, 300048-24VDC, 300140-12VDC, 300140-24VDC, 300141-12VDC, 300141-24VDC, 300142-12VDC, 300142-24VDC, 300143-12VDC, 300143-24VDC, 300144-12VDC, 300144-24VDC, 300145-12VDC, 300145-24VDC, 300146-12VDC, 300146-24VDC, 300147-12VDC, 300147-24VDC, 300148-12VDC, 300148-24VDC, 341030-12VDC, 341030-24VDC, 341030-24-60, 341030-120-60, 341030-240-60, 341031-12VDC, 341031-24VDC, 341031-24-60, 341031-120-60, 341031-240-60, 341032-12VDC, 341032-24VDC, 341032-24-60, 341032-120-60, 341032-240-60, 341033-12VDC, 341033-24VDC, 341033-24-60, 341033-120-60, 341033-240-60, 341034-12VDC, 341034-24VDC, 341034-24-60, 341034-120-60, 341034-240-60, 341035-12VDC, 341035-24VDC, 341035-24-60, 341035-120-60, 341035-240-60, 341036-12VDC, 341036-24VDC, 341036-24-60, 341036-120-60, 341036-240-60, 341037-12VDC, 341037-24VDC, 341037-24-60, 341037-120-60, 341037-240-60, 341038-12VDC, 341038-24VDC, 341038-24-60, 341038-120-60, 341038-240-60, 341130-12VDC, 341130-24VDC, 341130-24-60, 341130-120-60, 341130-240-60, 341131-12VDC, 341131-24VDC, 341131-24-60, 341131-120-60, 341131-240-60, 341132-12VDC, 341132-24VDC, 341132-24-60, 341132-120-60, 341132-240-60, 341133-12VDC, 341133-24VDC, 341133-24-60, 341133-120-60, 341133-240-60, 341134-12VDC, 341134-24VDC, 341134-24-60, 341134-120-60, 341134-240-60, 341135-12VDC, 341135-24VDC, 341135-24-60, 341135-120-60, 341135-240-60, 341136-12VDC, 341136-24VDC, 341136-24-60, 341136-120-60, 341136-240-60, 341137-12VDC, 341137-24VDC, 341137-24-60, 341137-120-60, 341137-240-60, 341138-12VDC, 341138-24VDC, 341138-24-60, 341138-120-60, 341138-240-60, 341040-12VDC, 341040-24VDC, 341040-24-60, 341040-120-60, 341040-240-60, 341041-12VDC, 341041-24VDC, 341041-24-60, 341041-120-60, 341041-240-60, 341042-12VDC, 341042-24VDC, 341042-24-60, 341042-120-60, 341042-240-60, 341043-12VDC, 341043-24VDC, 341043-24-60, 341043-120-60, 341043-240-60, 341044-12VDC, 341044-24VDC, 341044-24-60, 341044-120-60, 341044-240-60, 341045-12VDC, 341045-24VDC, 341045-24-60, 341045-120-60, 341045-240-60, 341046-12VDC, 341046-24VDC, 341046-24-60, 341046-120-60, 341046-240-60, 341047-12VDC, 341047-24VDC, 341047-24-60, 341047-120-60, 341047-240-60, 341048-12VDC, 341048-24VDC, 341048-24-60, 341048-120-60, 341048-240-60, 341140-12VDC, 341140-24VDC, 341140-24-60, 341140-120-60, 341140-240-60, 341141-12VDC, 341141-24VDC, 341141-24-60, 341141-120-60, 341141-240-60, 341142-12VDC, 341142-24VDC, 341142-24-60, 341142-120-60, 341142-240-60, 341143-12VDC, 341143-24VDC, 341143-24-60, 341143-120-60, 341143-240-60, 341144-12VDC, 341144-24VDC, 341144-24-60, 341144-120-60, 341144-240-60, 341145-12VDC, 341145-24VDC, 341145-24-60, 341145-120-60, 341145-240-60, 341146-12VDC, 341146-24VDC, 341146-24-60, 341146-120-60, 341146-240-60, 341147-12VDC, 341147-24VDC, 341147-24-60, 341147-120-60, 341147-240-60, 341148-12VDC, 341148-24VDC, 341148-24-60, 341148-120-60, 341148-240-60, 351030-12VDC, 351030-24VDC, 351030-24-60, 351030-120-60, 351030-240-60, 351031-12VDC, 351031-24VDC, 351031-24-60, 351031-120-60, 351031-240-60, 351032-12VDC, 351032-24VDC, 351032-24-60, 351032-120-60, 351032-240-60, 351033-12VDC, 351033-24VDC, 351033-24-60, 351033-120-60, 351033-240-60, 351034-12VDC, 351034-24VDC, 351034-24-60, 351034-120-60, 351034-240-60, 351035-12VDC, 351035-24VDC, 351035-24-60, 351035-120-60, 351035-240-60, 351036-12VDC, 351036-24VDC, 351036-24-60, 351036-120-60, 351036-240-60, 351037-12VDC, 351037-24VDC, 351037-24-60, 351037-120-60, 351037-240-60, 351038-12VDC, 351038-24VDC, 351038-24-60, 351038-120-60, 351038-240-60, 351130-12VDC, 351130-24VDC, 351130-24-60, 351130-120-60, 351130-240-60, 351131-12VDC, 351131-24VDC, 351131-24-60, 351131-120-60, 351131-240-60, 351132-12VDC, 351132-24VDC, 351132-24-60, 351132-120-60, 351132-240-60, 351133-12VDC, 351133-24VDC, 351133-24-60, 351133-120-60, 351133-240-60, 351134-12VDC, 351134-24VDC, 351134-24-60, 351134-120-60, 351134-240-60, 351135-12VDC, 351135-24VDC, 351135-24-60, 351135-120-60, 351135-240-60, 351136-12VDC, 351136-24VDC, 351136-24-60, 351136-120-60, 351136-240-60, 351137-12VDC, 351137-24VDC, 351137-24-60, 351137-120-60, 351137-240-60, 351138-12VDC, 351138-24VDC, 351138-24-60, 351138-120-60, 351138-240-60, 351040-12VDC, 351040-24VDC, 351040-24-60, 351040-120-60, 351040-240-60, 351041-12VDC, 351041-24VDC, 351041-24-60, 351041-120-60, 351041-240-60, 351042-12VDC, 351042-24VDC, 351042-24-60, 351042-120-60, 351042-240-60, 351043-12VDC, 351043-24VDC, 351043-24-60, 351043-120-60, 351043-240-60, 351044-12VDC, 351044-24VDC, 351044-24-60, 351044-120-60, 351044-240-60, 351045-12VDC, 351045-24VDC, 351045-24-60, 351045-120-60, 351045-240-60, 351046-12VDC, 351046-24VDC, 351046-24-60, 351046-120-60, 351046-240-60, 351047-12VDC, 351047-24VDC, 351047-24-60, 351047-120-60, 351047-240-60, 351048-12VDC, 351048-24VDC, 351048-24-60, 351048-120-60, 351048-240-60, 351140-12VDC, 351140-24VDC, 351140-24-60, 351140-120-60, 351140-240-60, 351141-12VDC, 351141-24VDC, 351141-24-60, 351141-120-60, 351141-240-60, 351142-12VDC, 351142-24VDC, 351142-24-60, 351142-120-60, 351142-240-60, 351143-12VDC, 351143-24VDC, 351143-24-60, 351143-120-60, 351143-240-60, 351144-12VDC, 351144-24VDC, 351144-24-60, 351144-120-60, 351144-240-60, 351145-12VDC, 351145-24VDC, 351145-24-60, 351145-120-60, 351145-240-60, 351146-12VDC, 351146-24VDC, 351146-24-60, 351146-120-60, 351146-240-60, 351147-12VDC, 351147-24VDC, 351147-24-60, 351147-120-60, 351147-240-60, 351148-12VDC, 351148-24VDC, 351148-24-60, 351148-120-60, 351148-240-60

[3/2-Way Normally Open (3WNO)] 300050-12VDC, 300050-24VDC, 300051-12VDC, 300051-24VDC, 300052-12VDC, 300052-24VDC, 300053-12VDC, 300053-24VDC, 300054-12VDC, 300054-24VDC, 300055-12VDC, 300055-24VDC, 300056-12VDC, 300056-24VDC, 300057-12VDC, 300057-24VDC, 300058-12VDC, 300058-24VDC, 300150-12VDC, 300150-24VDC, 300151-12VDC, 300151-24VDC, 300152-12VDC, 300152-24VDC, 300153-12VDC, 300153-24VDC, 300154-12VDC, 300154-24VDC, 300155-12VDC, 300155-24VDC, 300156-12VDC, 300156-24VDC, 300157-12VDC, 300157-24VDC, 300158-12VDC, 300158-24VDC, 341050-12VDC, 341050-24VDC, 341050-24-60, 341050-120-60, 341050-240-60, 341051-12VDC, 341051-24VDC, 341051-24-60, 341051-120-60, 341051-240-60, 341052-12VDC, 341052-24VDC, 341052-24-60, 341052-120-60, 341052-240-60, 341053-12VDC, 341053-24VDC, 341053-24-60, 341053-120-60, 341053-240-60, 341054-12VDC, 341054-24VDC, 341054-24-60, 341054-120-60, 341054-240-60, 341055-12VDC, 341055-24VDC, 341055-24-60, 341055-120-60, 341055-240-60, 341056-12VDC, 341056-24VDC, 341056-24-60, 341056-120-60, 341056-240-60, 341057-12VDC, 341057-24VDC, 341057-24-60, 341057-120-60, 341057-240-60, 341058-12VDC, 341058-24VDC, 341058-24-60, 341058-120-60, 341058-240-60, 341150-12VDC, 341150-24VDC, 341150-24-60, 341150-120-60, 341150-240-60, 341151-12VDC, 341151-24VDC, 341151-24-60, 341151-120-60, 341151-240-60, 341152-12VDC, 341152-24VDC, 341152-24-60, 341152-120-60, 341152-240-60, 341153-12VDC, 341153-24VDC, 341153-24-60, 341153-120-60, 341153-240-60, 341154-12VDC, 341154-24VDC, 341154-24-60, 341154-120-60, 341154-240-60, 341155-12VDC, 341155-24VDC, 341155-24-60, 341155-120-60, 341155-240-60, 341156-12VDC, 341156-24VDC, 341156-24-60, 341156-120-60, 341156-240-60, 341157-12VDC, 341157-24VDC, 341157-24-60, 341157-120-60, 341157-240-60, 341158-12VDC, 341158-24VDC, 341158-24-60, 341158-120-60, 341158-240-60, 351050-12VDC, 351050-24VDC, 351050-24-60, 351050-120-60, 351050-240-60, 351051-12VDC, 351051-24VDC, 351051-24-60, 351051-120-60, 351051-240-60, 351052-12VDC, 351052-24VDC, 351052-24-60, 351052-120-60, 351052-240-60, 351053-12VDC, 351053-24VDC, 351053-24-60, 351053-120-60, 351053-240-60, 351054-12VDC, 351054-24VDC, 351054-24-60, 351054-120-60, 351054-240-60, 351055-12VDC, 351055-24VDC, 351055-24-60, 351055-120-60, 351055-240-60, 351056-12VDC, 351056-24VDC, 351056-24-60, 351056-120-60, 351056-240-60, 351057-12VDC, 351057-24VDC, 351057-24-60, 351057-120-60, 351057-240-60, 351058-12VDC, 351058-24VDC, 351058-24-60, 351058-120-60, 351058-240-60, 351150-12VDC, 351150-24VDC, 351150-24-60, 351150-120-60, 351150-240-60, 351151-12VDC, 351151-24VDC, 351151-24-60, 351151-120-60, 351151-240-60, 351152-12VDC, 351152-24VDC, 351152-24-60, 351152-120-60, 351152-240-60, 351153-12VDC, 351153-24VDC, 351153-24-60, 351153-120-60, 351153-240-60, 351154-12VDC, 351154-24VDC, 351154-24-60, 351154-120-60, 351154-240-60, 351155-12VDC, 351155-24VDC, 351155-24-60, 351155-120-60, 351155-240-60, 351156-12VDC, 351156-24VDC, 351156-24-60, 351156-120-60, 351156-240-60, 351157-12VDC, 351157-24VDC, 351157-24-60, 351157-120-60, 351157-240-60, 351158-12VDC, 351158-24VDC, 351158-24-60, 351158-120-60, 351158-240-60

[3/2-Way Multi-Purpose (3WMP) & Directional Control (3WDC)] 300060-12VDC, 300060-24VDC, 300061-12VDC, 300061-24VDC, 300062-12VDC, 300062-24VDC, 300063-12VDC, 300063-24VDC, 300064-12VDC, 300064-24VDC, 300065-12VDC, 300065-24VDC, 300066-12VDC, 300066-24VDC, 300067-12VDC, 300067-24VDC, 300068-12VDC, 300068-24VDC, 300160-12VDC, 300160-24VDC, 300161-12VDC, 300161-24VDC, 300162-12VDC, 300162-24VDC, 300163-12VDC, 300163-24VDC, 300164-12VDC, 300164-24VDC, 300165-12VDC, 300165-24VDC, 300166-12VDC, 300166-24VDC, 300167-12VDC, 300167-24VDC, 300168-12VDC, 300168-24VDC, 300070-12VDC, 300070-24VDC, 300071-12VDC, 300071-24VDC, 300072-12VDC, 300072-24VDC, 300073-12VDC, 300073-24VDC, 300074-12VDC, 300074-24VDC, 300075-12VDC, 300075-24VDC, 300076-12VDC, 300076-24VDC, 300077-12VDC, 300077-24VDC, 300078-12VDC, 300078-24VDC, 300170-12VDC, 300170-24VDC, 300171-12VDC, 300171-24VDC, 300172-12VDC, 300172-24VDC, 300173-12VDC, 300173-24VDC, 300174-12VDC, 300174-24VDC, 300175-12VDC, 300175-24VDC, 300176-12VDC, 300176-24VDC, 300177-12VDC, 300177-24VDC, 300178-12VDC, 300178-24VDC, 341060-12VDC, 341060-24VDC, 341060-24-60, 341060-120-60, 341060-240-60, 341061-12VDC, 341061-24VDC, 341061-24-60, 341061-120-60, 341061-240-60, 341062-12VDC, 341062-24VDC, 341062-24-60, 341062-120-60, 341062-240-60, 341063-12VDC, 341063-24VDC, 341063-24-60, 341063-120-60, 341063-240-60, 341064-12VDC, 341064-24VDC, 341064-24-60, 341064-120-60, 341064-240-60, 341065-12VDC, 341065-24VDC, 341065-24-60, 341065-120-60, 341065-240-60, 341066-12VDC, 341066-24VDC, 341066-24-60, 341066-120-60, 341066-240-60, 341067-12VDC, 341067-24VDC, 341067-24-60, 341067-120-60, 341067-240-60, 341068-12VDC, 341068-24VDC, 341068-24-60, 341068-120-60, 341068-240-60, 341160-12VDC, 341160-24VDC, 341160-24-60, 341160-120-60, 341160-240-60, 341161-12VDC, 341161-24VDC, 341161-24-60, 341161-120-60, 341161-240-60, 341162-12VDC, 341162-24VDC, 341162-24-60, 341162-120-60, 341162-240-60, 341163-12VDC, 341163-24VDC, 341163-24-60, 341163-120-60, 341163-240-60, 341164-12VDC, 341164-24VDC, 341164-24-60, 341164-120-60, 341164-240-60, 341165-12VDC, 341165-24VDC, 341165-24-60, 341165-120-60, 341165-240-60, 341166-12VDC, 341166-24VDC, 341166-24-60, 341166-120-60, 341166-240-60, 341167-12VDC, 341167-24VDC, 341167-24-60, 341167-120-60, 341167-240-60, 341168-12VDC, 341168-24VDC, 341168-24-60, 341168-120-60, 341168-240-60, 341070-12VDC, 341070-24VDC, 341070-24-60, 341070-120-60, 341070-240-60, 341071-12VDC, 341071-24VDC, 341071-24-60, 341071-120-60, 341071-240-60, 341072-12VDC, 341072-24VDC, 341072-24-60, 341072-120-60, 341072-240-60, 341073-12VDC, 341073-24VDC, 341073-24-60, 341073-120-60, 341073-240-60, 341074-12VDC, 341074-24VDC, 341074-24-60, 341074-120-60, 341074-240-60, 341075-12VDC, 341075-24VDC, 341075-24-60, 341075-120-60, 341075-240-60, 341076-12VDC, 341076-24VDC, 341076-24-60, 341076-120-60, 341076-240-60, 341077-12VDC, 341077-24VDC, 341077-24-60, 341077-120-60, 341077-240-60, 341078-12VDC, 341078-24VDC, 341078-24-60, 341078-120-60, 341078-240-60, 341170-12VDC, 341170-24VDC, 341170-24-60, 341170-120-60, 341170-240-60, 341171-12VDC, 341171-24VDC, 341171-24-60, 341171-120-60, 341171-240-60, 341172-12VDC, 341172-24VDC, 341172-24-60, 341172-120-60, 341172-240-60, 341173-12VDC, 341173-24VDC, 341173-24-60, 341173-120-60, 341173-240-60, 341174-12VDC, 341174-24VDC, 341174-24-60, 341174-120-60, 341174-240-60, 341175-12VDC, 341175-24VDC, 341175-24-60, 341175-120-60, 341175-240-60, 341176-12VDC, 341176-24VDC, 341176-24-60, 341176-120-60, 341176-240-60, 341177-12VDC, 341177-24VDC, 341177-24-60, 341177-120-60, 341177-240-60, 341178-12VDC, 341178-24VDC, 341178-24-60, 341178-120-60, 341178-240-60, 351060-12VDC, 351060-24VDC, 351060-24-60, 351060-120-60, 351060-240-60, 351061-12VDC, 351061-24VDC, 351061-24-60, 351061-120-60, 351061-240-60, 351062-12VDC, 351062-24VDC, 351062-24-60, 351062-120-60, 351062-240-60, 351063-12VDC, 351063-24VDC, 351063-24-60, 351063-120-60, 351063-240-60, 351064-12VDC, 351064-24VDC, 351064-24-60, 351064-120-60, 351064-240-60, 351065-12VDC, 351065-24VDC, 351065-24-60, 351065-120-60, 351065-240-60, 351066-12VDC, 351066-24VDC, 351066-24-60, 351066-120-60, 351066-240-60, 351067-12VDC, 351067-24VDC, 351067-24-60, 351067-120-60, 351067-240-60, 351068-12VDC, 351068-24VDC, 351068-24-60, 351068-120-60, 351068-240-60, 351160-12VDC, 351160-24VDC, 351160-24-60, 351160-120-60, 351160-240-60, 351161-12VDC, 351161-24VDC, 351161-24-60, 351161-120-60, 351161-240-60, 351162-12VDC, 351162-24VDC, 351162-24-60, 351162-120-60, 351162-240-60, 351163-12VDC, 351163-24VDC, 351163-24-60, 351163-120-60, 351163-240-60, 351164-12VDC, 351164-24VDC, 351164-24-60, 351164-120-60, 351164-240-60, 351165-12VDC, 351165-24VDC, 351165-24-60, 351165-120-60, 351165-240-60, 351166-12VDC, 351166-24VDC, 351166-24-60, 351166-120-60, 351166-240-60, 351167-12VDC, 351167-24VDC, 351167-24-60, 351167-120-60, 351167-240-60, 351168-12VDC, 351168-24VDC, 351168-24-60, 351168-120-60, 351168-240-60, 351070-12VDC, 351070-24VDC, 351070-24-60, 351070-120-60, 351070-240-60, 351071-12VDC, 351071-24VDC, 351071-24-60, 351071-120-60, 351071-240-60, 351072-12VDC, 351072-24VDC, 351072-24-60, 351072-120-60, 351072-240-60, 351073-12VDC, 351073-24VDC, 351073-24-60, 351073-120-60, 351073-240-60, 351074-12VDC, 351074-24VDC, 351074-24-60, 351074-120-60, 351074-240-60, 351075-12VDC, 351075-24VDC, 351075-24-60, 351075-120-60, 351075-240-60, 351076-12VDC, 351076-24VDC, 351076-24-60, 351076-120-60, 351076-240-60, 351077-12VDC, 351077-24VDC, 351077-24-60, 351077-120-60, 351077-240-60, 351078-12VDC, 351078-24VDC, 351078-24-60, 351078-120-60, 351078-240-60, 351170-12VDC, 351170-24VDC, 351170-24-60, 351170-120-60, 351170-240-60, 351171-12VDC, 351171-24VDC, 351171-24-60, 351171-120-60, 351171-240-60, 351172-12VDC, 351172-24VDC, 351172-24-60, 351172-120-60, 351172-240-60, 351173-12VDC, 351173-24VDC, 351173-24-60, 351173-120-60, 351173-240-60, 351174-12VDC, 351174-24VDC, 351174-24-60, 351174-120-60, 351174-240-60, 351175-12VDC, 351175-24VDC, 351175-24-60, 351175-120-60, 351175-240-60, 351176-12VDC, 351176-24VDC, 351176-24-60, 351176-120-60, 351176-240-60, 351177-12VDC, 351177-24VDC, 351177-24-60, 351177-120-60, 351177-240-60, 351178-12VDC, 351178-24VDC, 351178-24-60, 351178-120-60, 351178-240-60

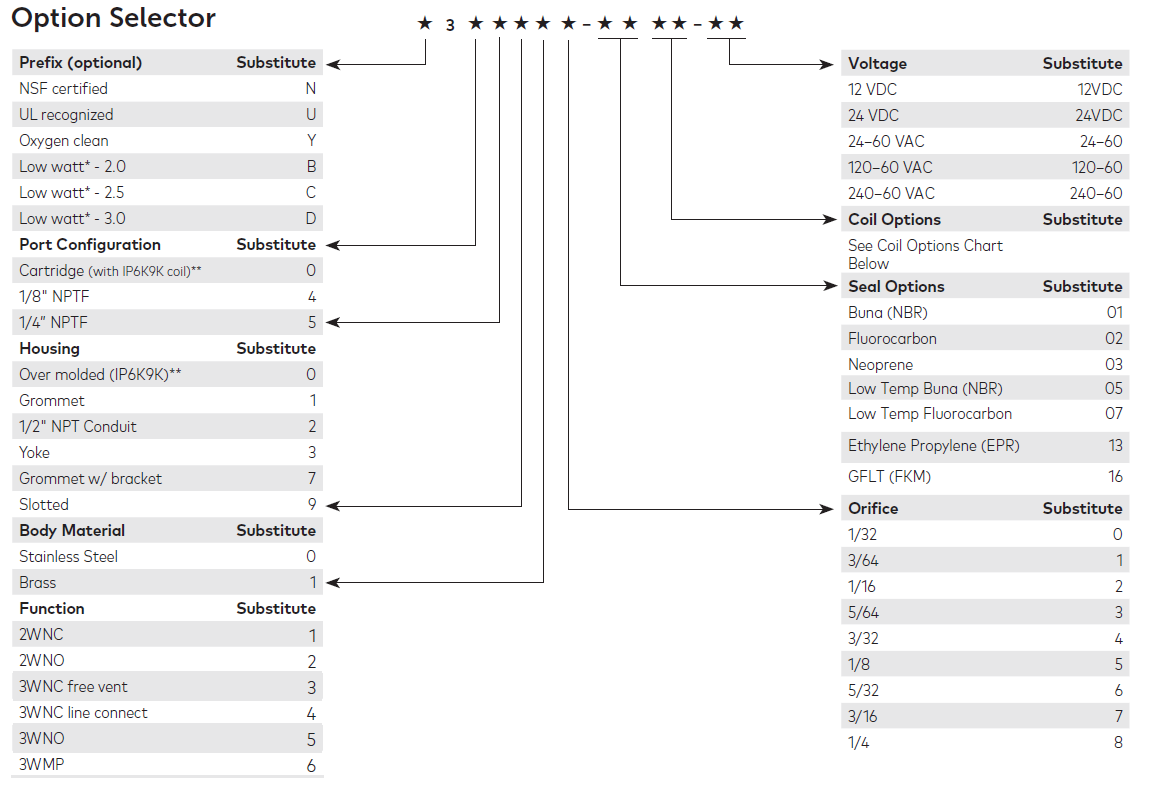

[Options, Seals & Coil Codes (選配與認證代碼)] 料號結構: [前綴] 3 + 接口(0/4/5) + 外殼(0/1/2/3/7/9) + 材質(0/1) + 功能(1~7) + 孔徑(0~8) - 線圈電壓 | Prefix: N (NSF Certified), U (UL Recognized), Y (Oxygen Clean), B (Low Watt 2.0W), C (Low Watt 2.5W), D (Low Watt 3.0W) | Seals: 01 (Buna-N), 02 (Fluorocarbon/FKM), 03 (Neoprene), 05 (Low Temp NBR), 07 (Low Temp FKM), 13 (EPR/EPDM), 16 (GFLT) | Coils: 01 (Class B Dry Tape), 03 (Class H Dry Tape), 31 (Class B 3/16" Vertical Spade), 41 (Class B Potted), 43 (Class H Potted), 51 (Class B 1/4" Vertical/Top Spade), 61 (Class B Free-standing Molded), 70 (Class H IP6K9K Over Molded) | Voltages: 12VDC, 24VDC, 24-60 (VAC), 120-60 (VAC), 240-60 (VAC) | IP6K9K 圓筒型(接口0/外殼0): 僅限線圈70、密封01/03/07/16、12VDC/24VDC

[諮詢服務] 科瑞流體控制為 IMI Norgren 在台授權代理商,提供 KIP 系列電磁閥完整選型諮詢與技術支援服務!
如有其他規格或特殊選型需求，歡迎隨時聯繫我們！
